2. Pull the drive directly toward you to remove it from the drive bay, as shown in
Figure 7-12.
For instructions on installing a drive in a secondary (option) drive bay, go
to"Installing and Removing Internal Drives" on page 160.
To leave the drive bay empty, replace the blank panel before replacing the bezel, as
described in the next section.

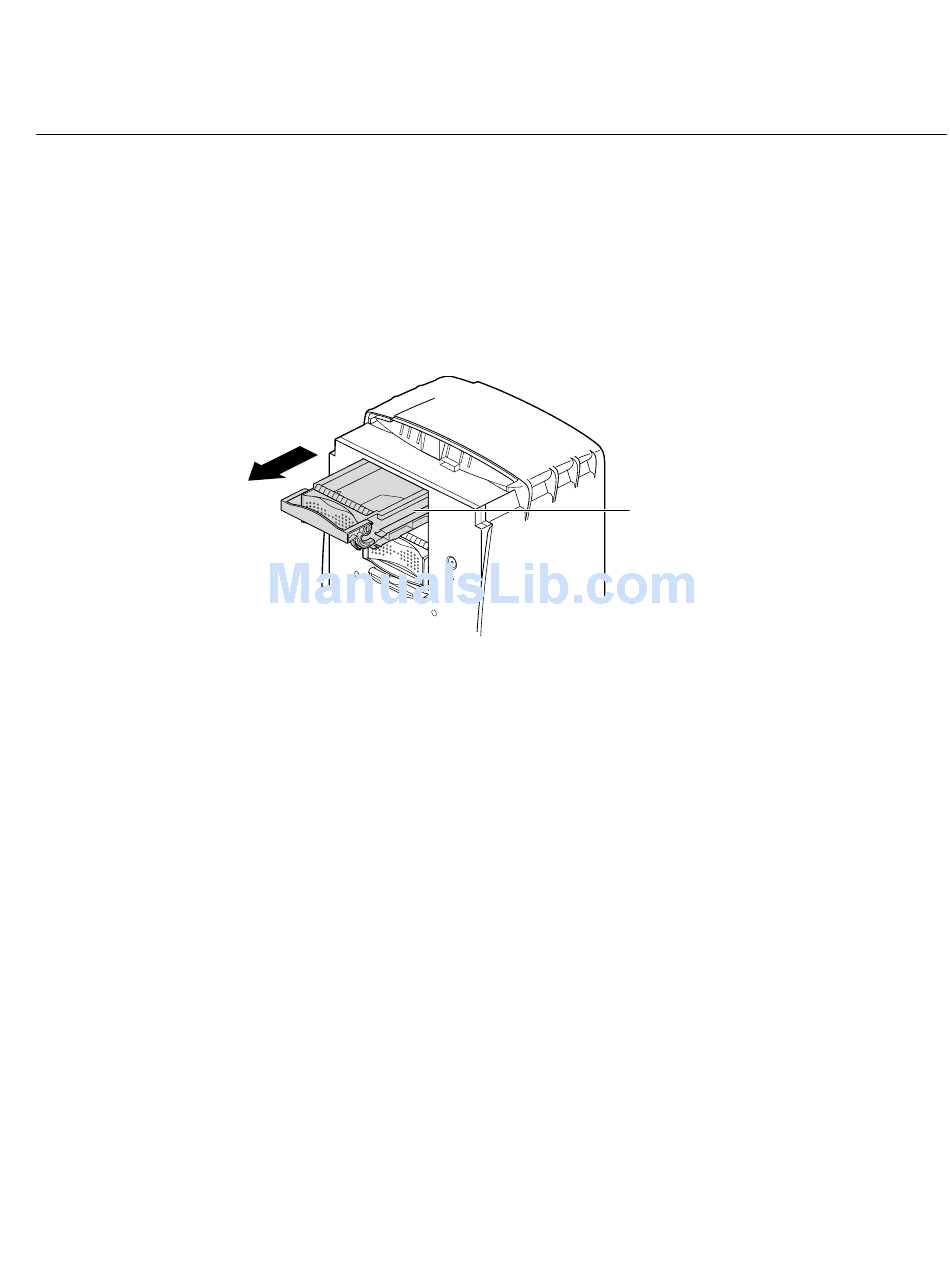

Sliding Out the Secondary (Option) Drive
Figure 7-12

Replacing a Blank Panel

When you remove a secondary drive and do not replace it, you must replace the
appropriate blank panel. You must also reconfigure the system for the removal of a drive.
For information on reconfiguring the system for removal of a drive, choose
Note:
Toolchest > Help > Online Books > End User bookshelf > Personal System
Administration Guide, then search for "Removing a Disk."
To replace the blank panel, follow these steps:
1. Remove the bezel, as described in "Removing the Bezel" on page 162.
2. Place the bezel face down on the flat surface with the door closed (make sure you
place the bezel on a surface that does not scratch or mar the bezel).
3. Locate the appropriate opening for the blank panel (opposite the empty drive bay),
then place the blank panel in it, as shown in Figure 7-13.
Installing and Removing Internal Drives
Option drive
171
