Figure 5-11 Placing A Cap On The Xio Compression Connector - Silicon Graphics OCTANE2 Owner's Manual

5. Place a cap on the VPro graphics board compression connector, as shown in
Figure 5-10 and Figure 5-11.
Spare caps are included with your workstation.
Caution: To prevent damage to the connector, do not touch or bump the gold (front)
surface. For compression connector care and cleaning instructions, see Appendix A,
"Care and Cleaning of Compression Connectors."
Caution - Do not touch

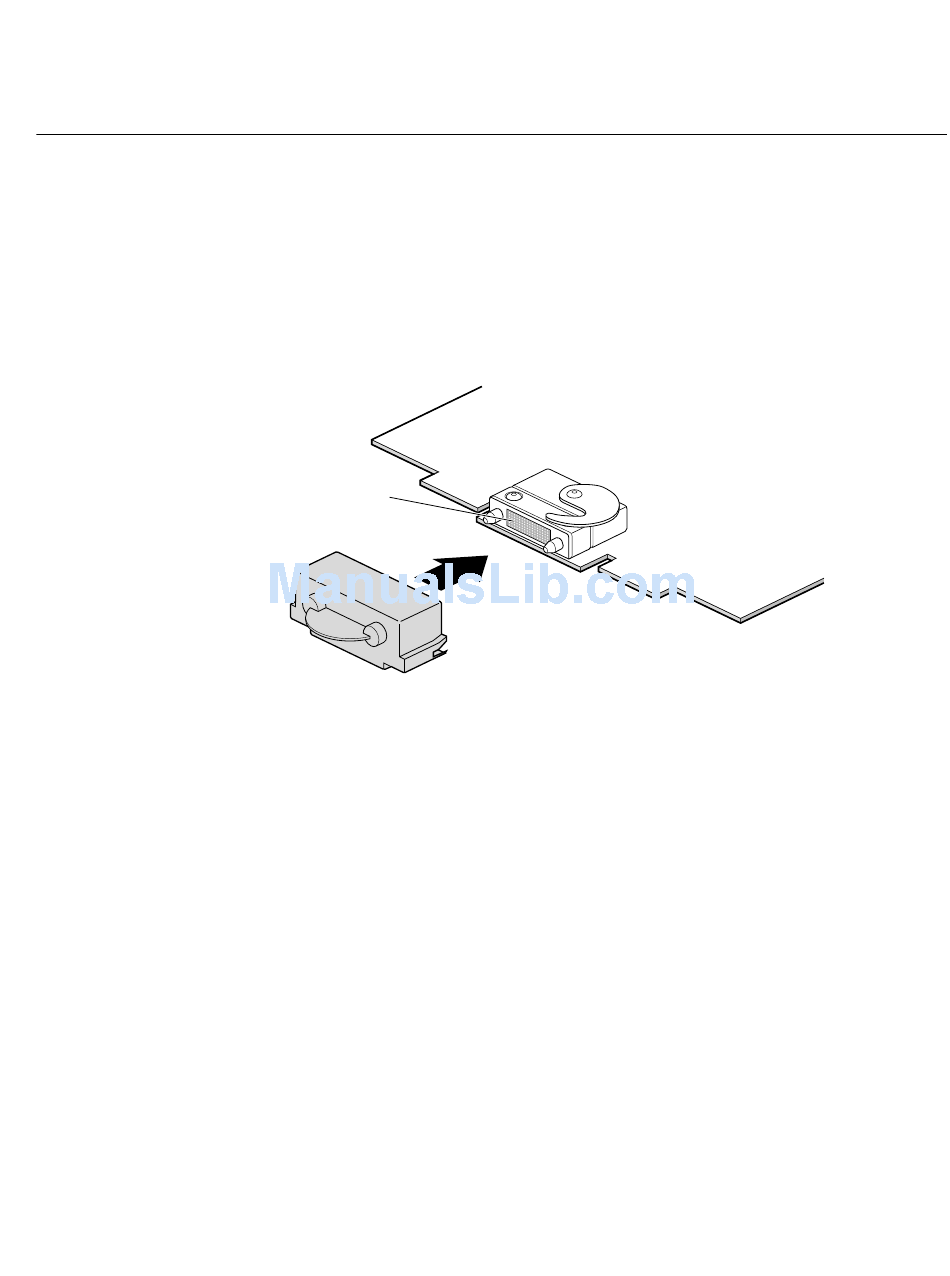

Figure 5-11 Placing a Cap on the XIO Compression Connector
Removing the XIO Tri-Module
