Chapter 4: Installing and Removing PCI Boards
94

Opening the I/O Door for Extra-Long Connectors

1. Remove the screws that secure any other PCI boards to the module, as shown in
Figure 4-36.

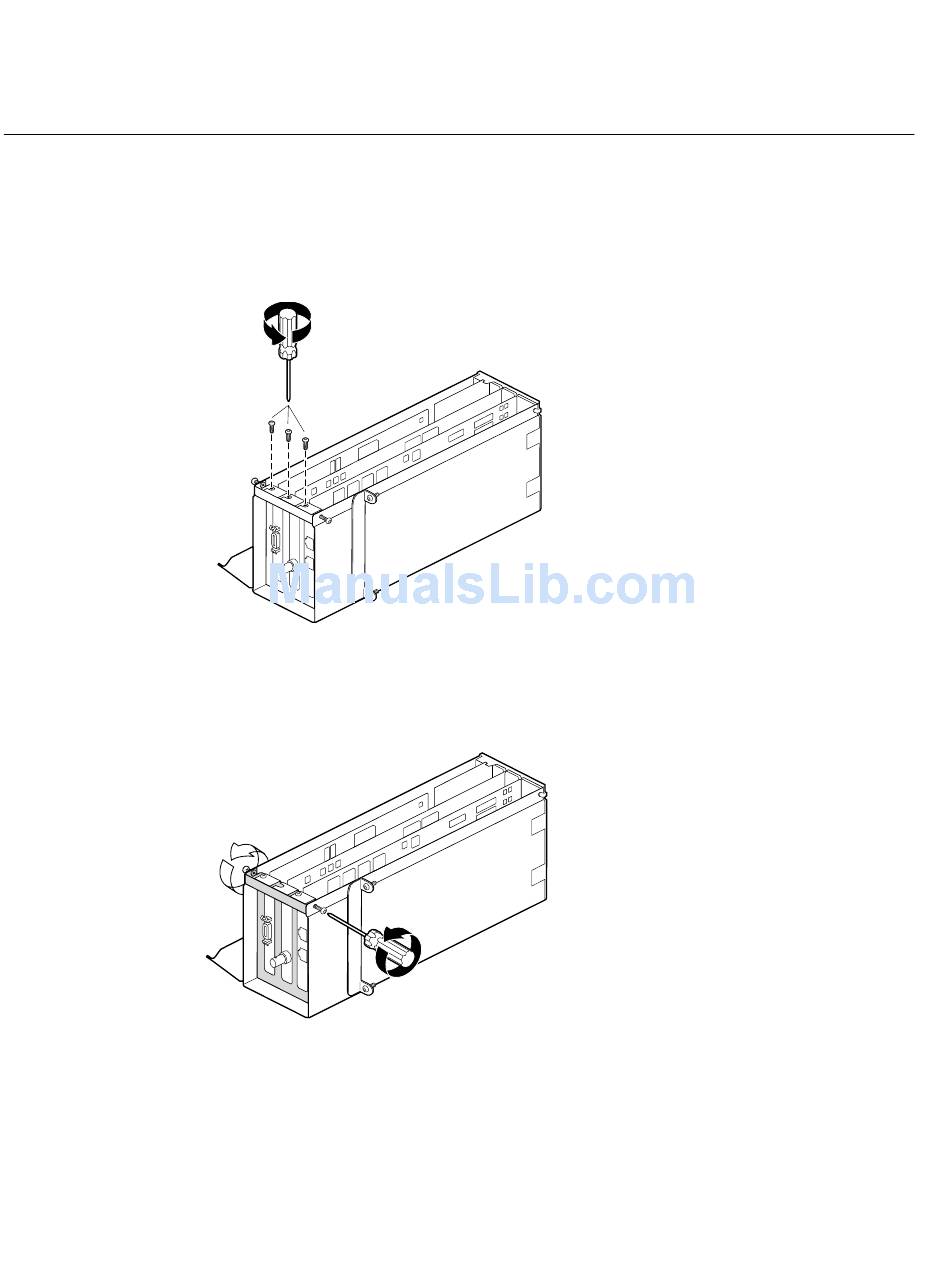

Figure 4-36 Removing the I/O Panel Screws
2. Remove the screws that secure the I/O panel door to the PCI module, as shown in
Figure 4-37.
Figure 4-37 Removing the I/O Door Screws
