Removing an Option Board or Blank Panel
Caution: Do not touch the gold XIO compression connector.

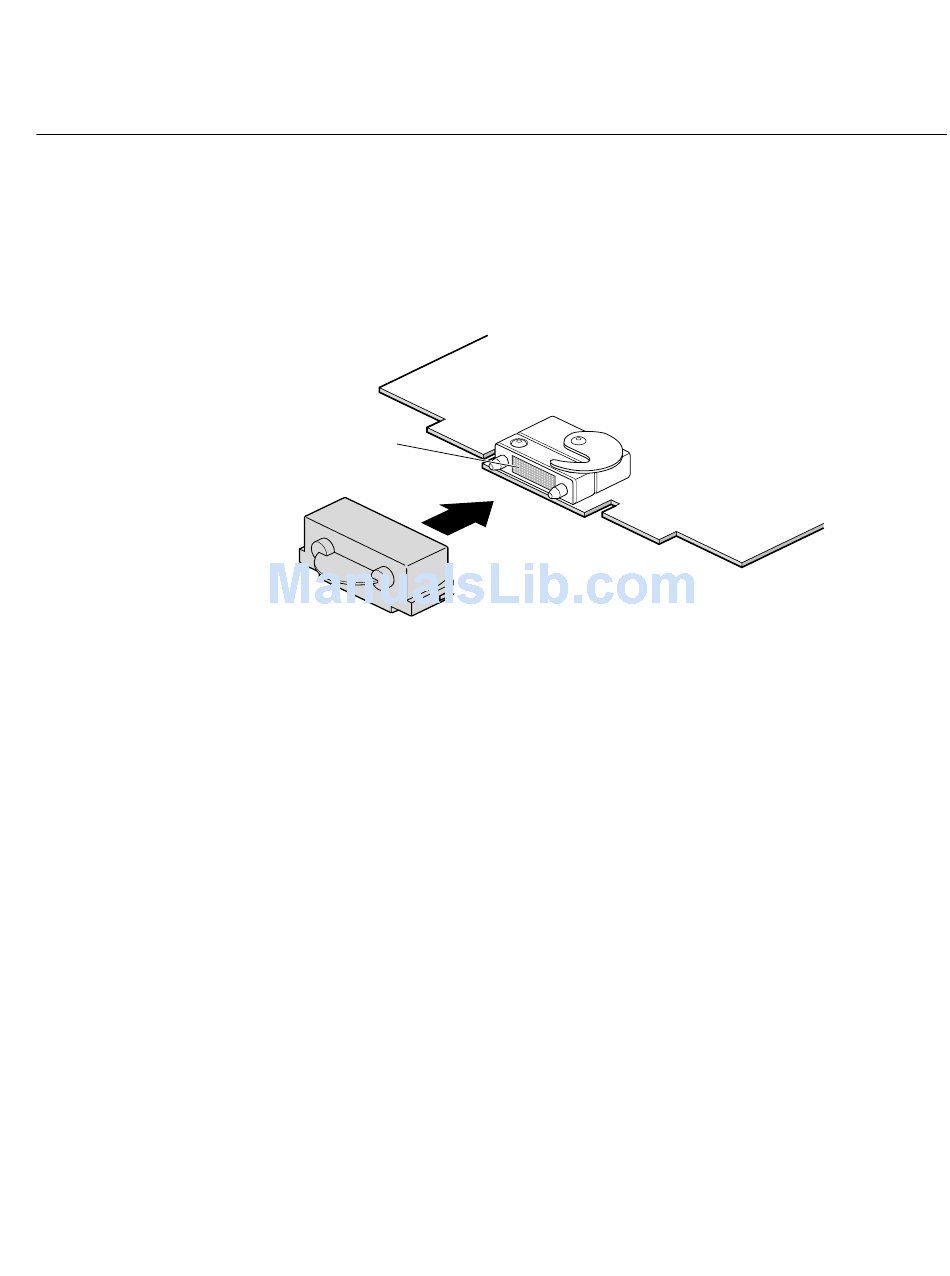

Before you remove an option board place a cap on the XIO compression connector, as
shown in Figure 5-13, to prevent accidental damage when removing the board.
Caution - Do not touch
Figure 5-13
Placing the Cap on the XIO Compression Connector
Note:
The following illustrations show you how to remove a blank panel.
