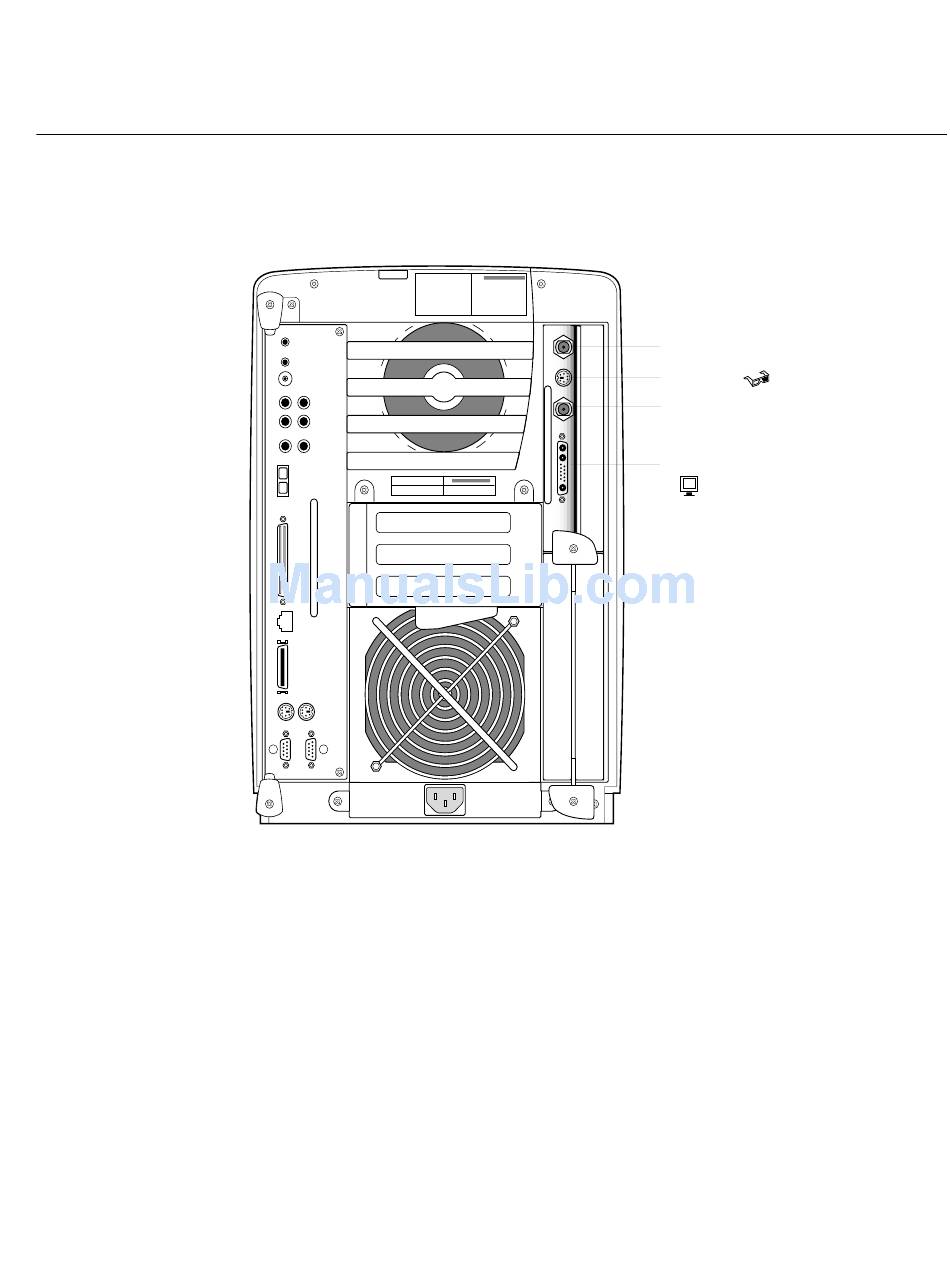

Figure 5-2 shows the XIO Tri-Module and each of the VPro graphics board I/O ports.
R L
InOut
2 1
Figure 5-2 XIO Tri-Module with VPro Graphics Board I/O Ports
For VPro graphics, a 1280 x 1024 display resolution is only possible using the Sony
Note:
G1 21" or 24" monitors at a vertical refresh rate of 96Hz. If you have another monitor, you
cannot run 1280 x 1024 resolution at any vertical refresh rate. For a matrix of supported
scan rates, see page 239.
1
2
3
About the XIO Tri-Module and XIO Boards
Genlock
StereoView
Swap Ready
Monitor (see note below)
