Removing Memory

Memory modules are extremely sensitive to static electricity. Handle the modules
carefully, and wear the wrist strap while removing them.
1. Locate the DIMMs you want to remove.
Caution: Do not touch the connector near the DIMM removal levers.
2. Remove the DIMMs.
Press down on the latch at the end of the DIMM socket (see A in Figure 2-20).
The DIMM partially ejects from the socket.
Remove the DIMM (B).
Both sockets in a DIMM bank must be either empty or populated. If you are
Note:
removing one DIMM and not replacing it immediately, also remove the other DIMM
in the bank and replace it when you install a new DIMM.
DIMM
B
DIMM sockets

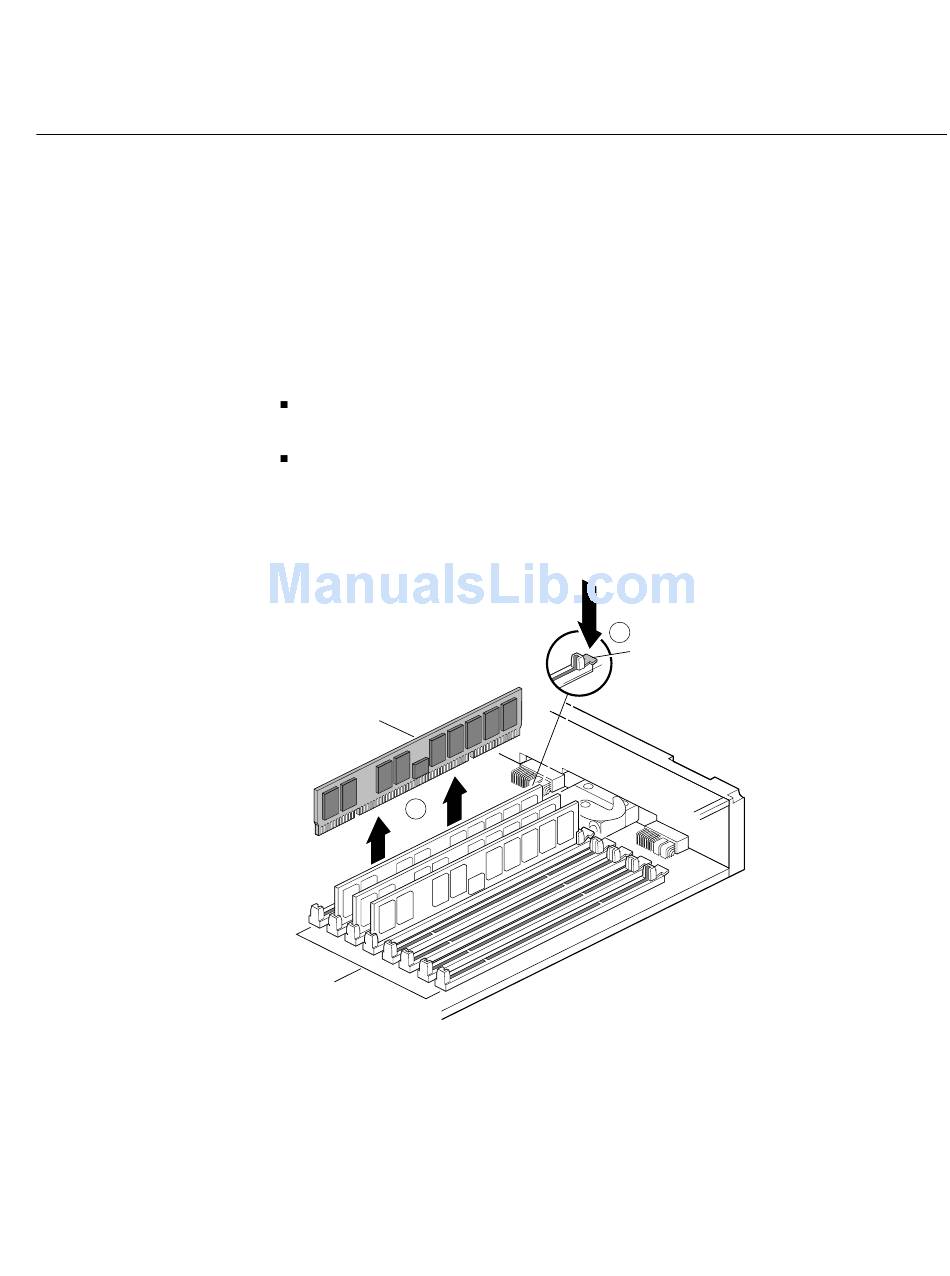

Figure 2-20 Removing a DIMM
Installing and Removing Memory
A
Press latch
51
