Chapter 5: Installing and Removing XIO Boards
120
6. Using the supplied Phillips screwdriver, remove the screws from the option board
or blank panel, as shown in Figure 5-14.

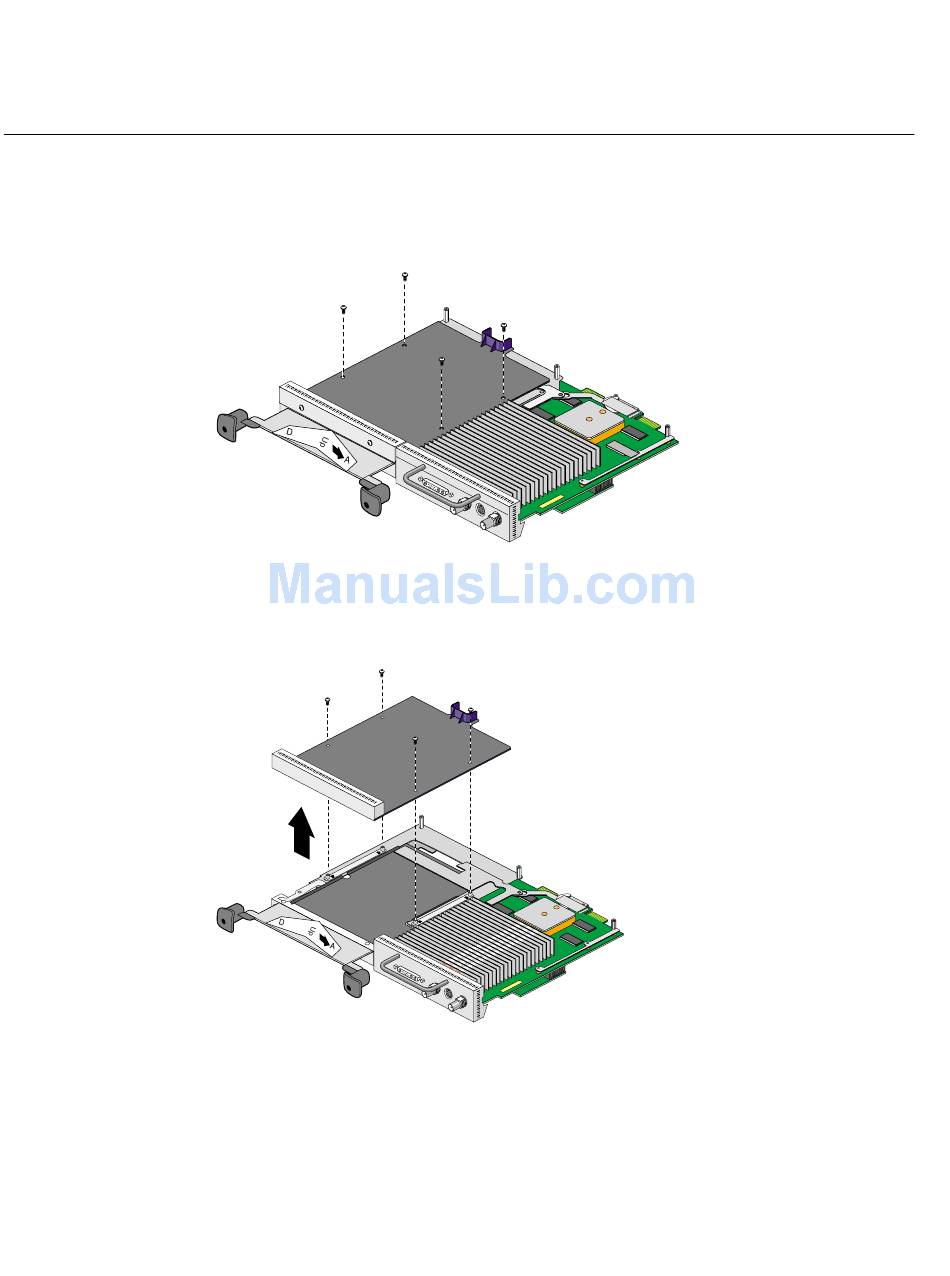

Figure 5-14 Removing the Screws from the Blank Panel
7. Grasp the blank panel or option board on the front and on the side of the board with
no connectors and lift, as shown in Figure 5-15.
Figure 5-15 Removing the Blank Panel
