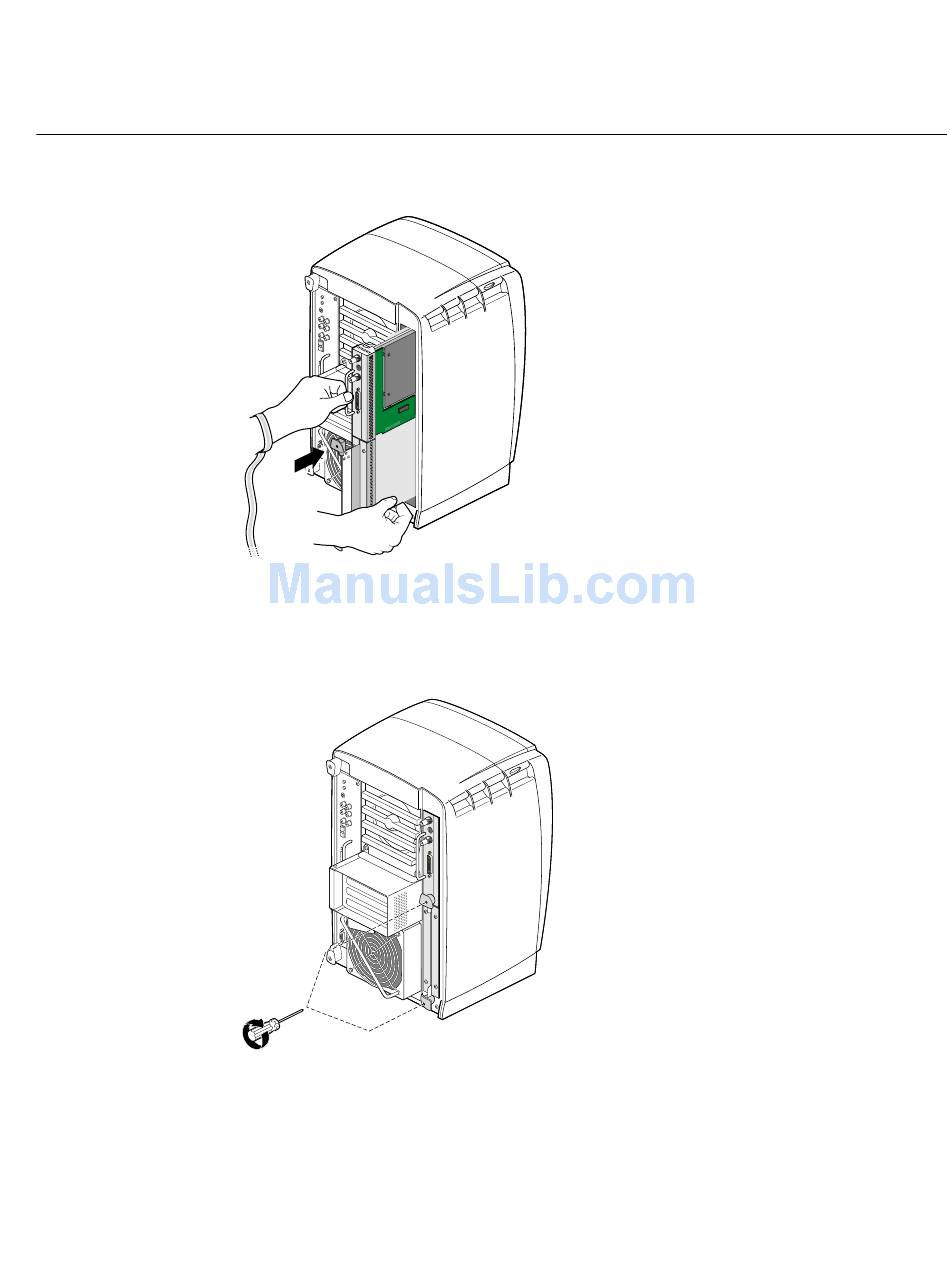

Inserting the XIO Tri-Module
Figure 5-18
6. Tighten the captive screws in the sliding handles, as shown in Figure 5-19.
Start by tightening a few threads on each captive screw before fully tightening.
Tip:
Tightening the XIO Tri-Module Screws
Figure 5-19
Reinstalling the XIO Tri-Module
125
