Figure 1-11 Connecting The Monitor And Power Cables - Silicon Graphics OCTANE2 Owner's Manual

Chapter 1: Getting Started
14
8. Connect the monitor and power cables, as shown in Figure 1-11.
Connect the monitor-to-graphics cable (A) to the monitor.
Connect the monitor-to-graphics cable (B) to the monitor connector on the back
of your workstation.
Connect the monitor power cable (C) to the monitor.
Connect the Octane2 power cable (D) to the back of your workstation.
B
D
C

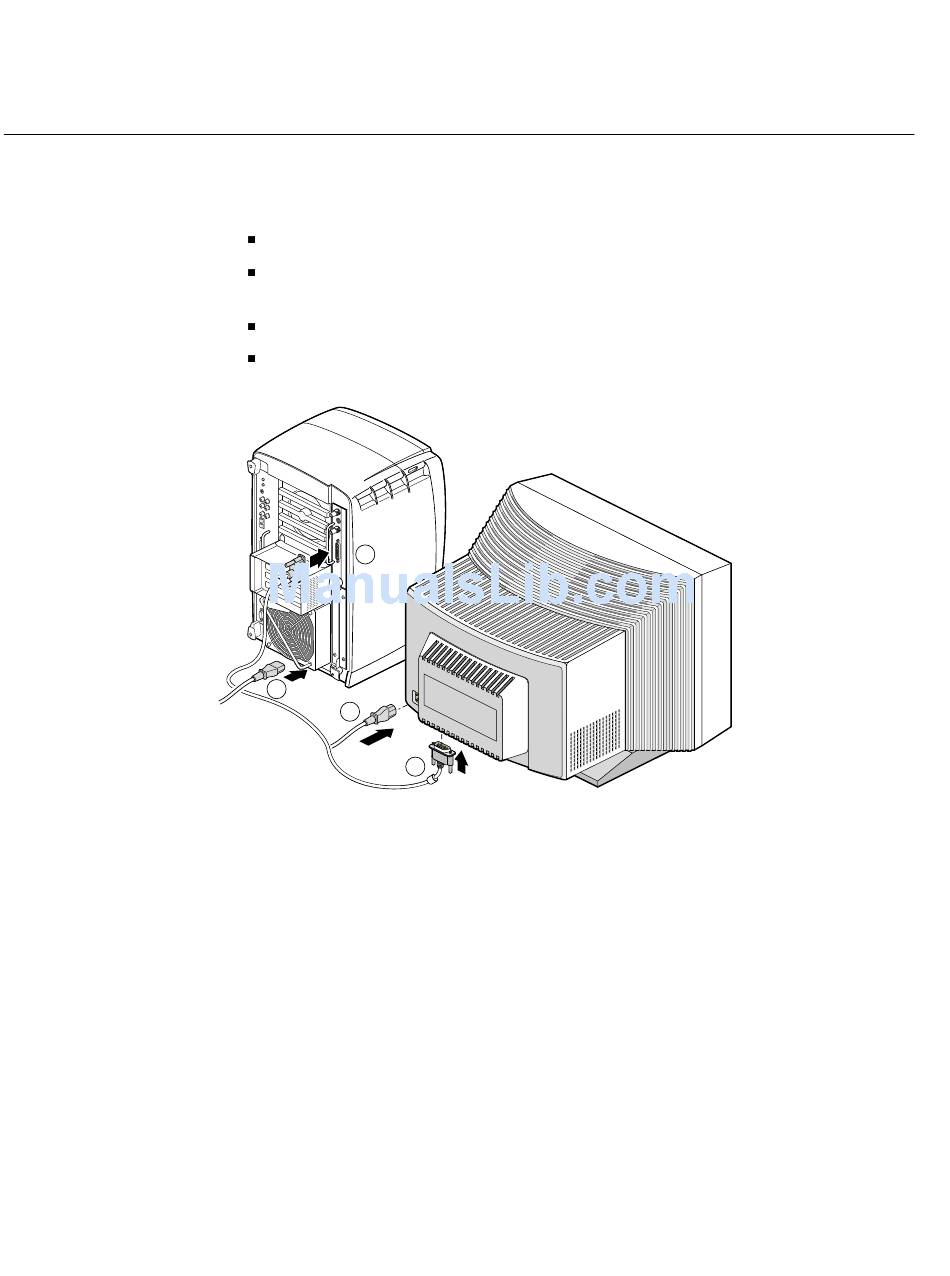

Figure 1-11 Connecting the Monitor and Power Cables
A C
IN
A
