Installing The Pci Module; Figure 4-46 Removing The Screws From The Blank Panel - Silicon Graphics OCTANE2 Owner's Manual

Chapter 4: Installing and Removing PCI Boards

Installing the PCI Module

100
If you are installing a PCI module for the first time, you have to remove the blank panel.
1. Using a Phillips screwdriver, remove the screws from the blank panel, as shown in
Figure 4-46.

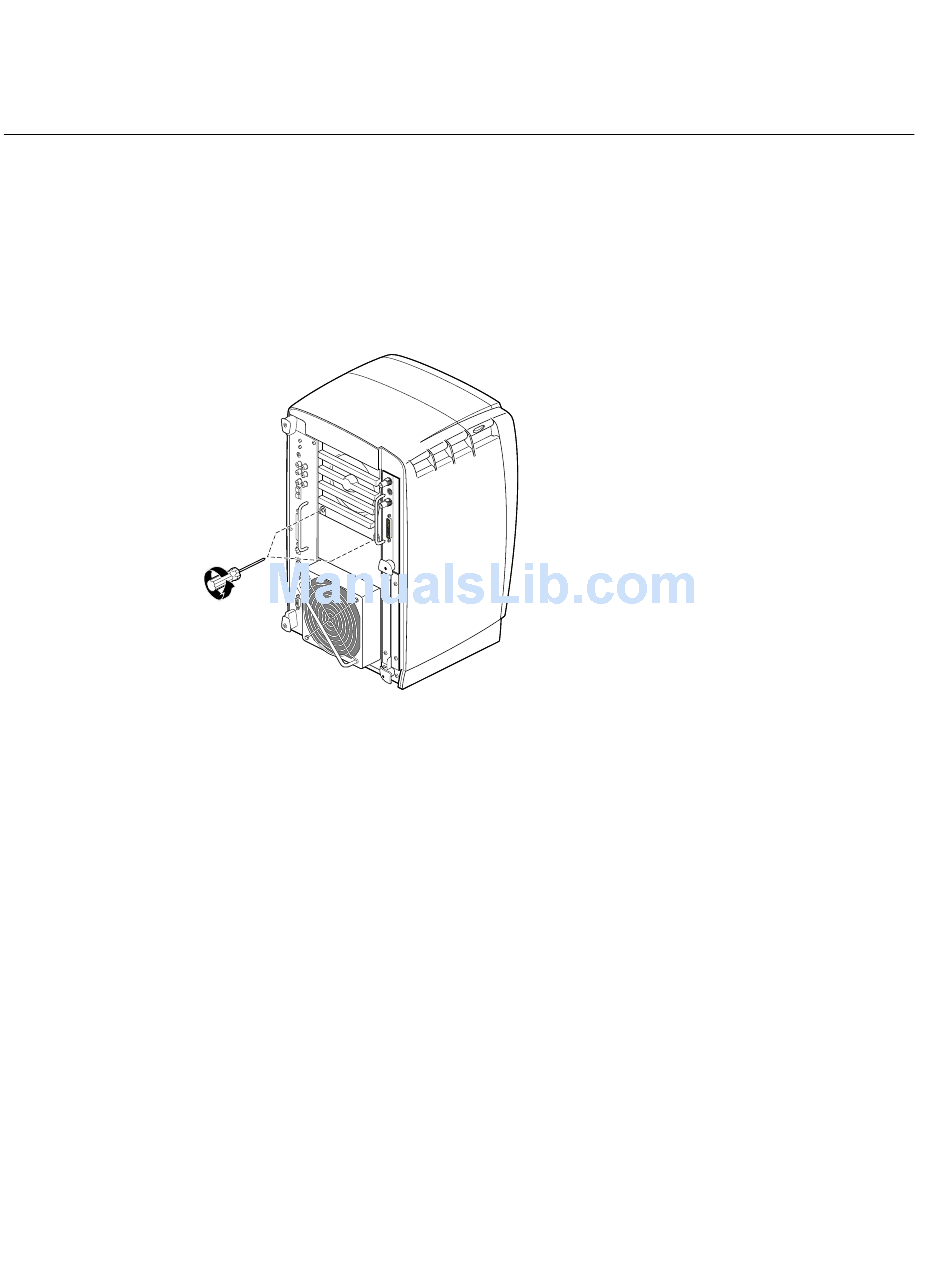

Figure 4-46 Removing the Screws from the Blank Panel
2. Using a flathead screwdriver, place the tip of the screwdriver in the slot at the top
and middle of the blank panel.
3. Pull the panel outward and lift it up and out, as shown in Figure 4-47.
Save the blank panel in case you want to remove the PCI module at a later
Note:
time. Either the PCI module or the blank panel must be installed at all times.
