Chapter 2: Installing and Removing the CPU and Memory
50

Removing the DIMM Bracket

If a DIMM bracket is not installed (see Figure 2-18), skip this section. If a DIMM bracket
is installed, as shown in Figure 2-19, you must remove it as follows:
1. Remove the DIMM bracket from the rail by pushing it toward the heat sink (see the
warning on page 32), and bowing the bracket upward, as shown in Figure 2-19.
2. Slide the bracket off the heat sink.
Caution: Memory modules are extremely sensitive to static electricity. Handle the
modules carefully, and wear the wrist strap.

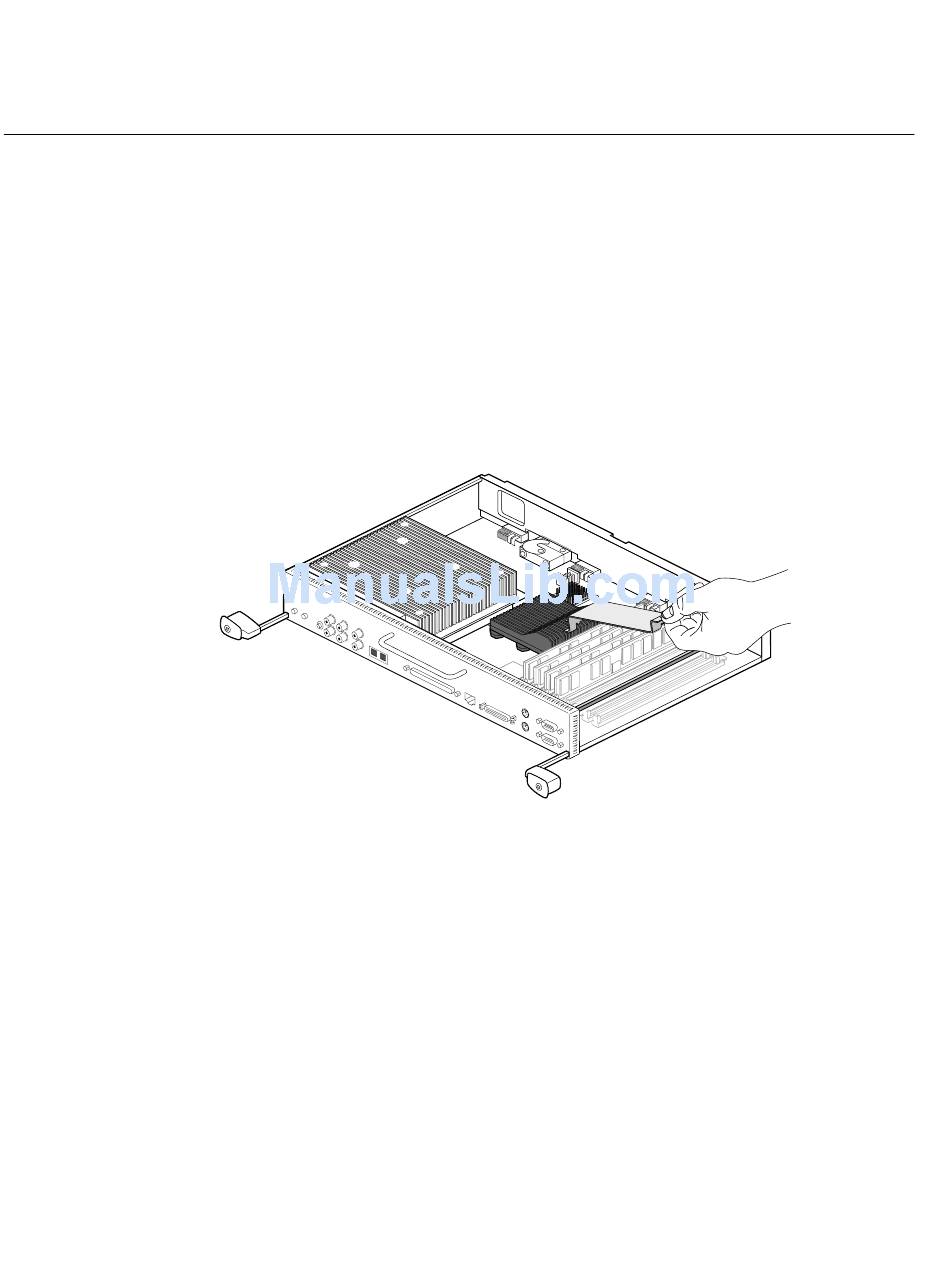

Figure 2-19 Removing the DIMM bracket
The DIMM bracket is not required for normal operation of your workstation.
Note:
It was installed in your workstation to protect the DIMMs during shipping. Store the
DIMM bracket in a safe place. If you need to ship your workstation, reinstall the
bracket to protect the DIMMs.
