Chapter 7: Installing and Removing Internal Drives and Front Module Parts

Removing and Replacing the Frontplane Module

180
You must remove the frontplane module if you want to install a new system fan or a new
frontplane module. If you are installing a new frontplane module, you must also remove
the system identification module, as described later in this section.
Caution: The components on the frontplane module are extremely sensitive to static
electricity; you must wear the wrist strap while working with the frontplane module.

Attaching the Wrist Strap

1. Unroll the first two folds of the band (see A in Figure 7-22).
2. Wrap the exposed adhesive side firmly around your wrist (B), unroll the rest of the
band, then peel the liner from the copper foil at the opposite end.
3. Attach the copper foil to any exposed electrical ground, such as a metal part of the
workstation (C).
A
Unroll
B

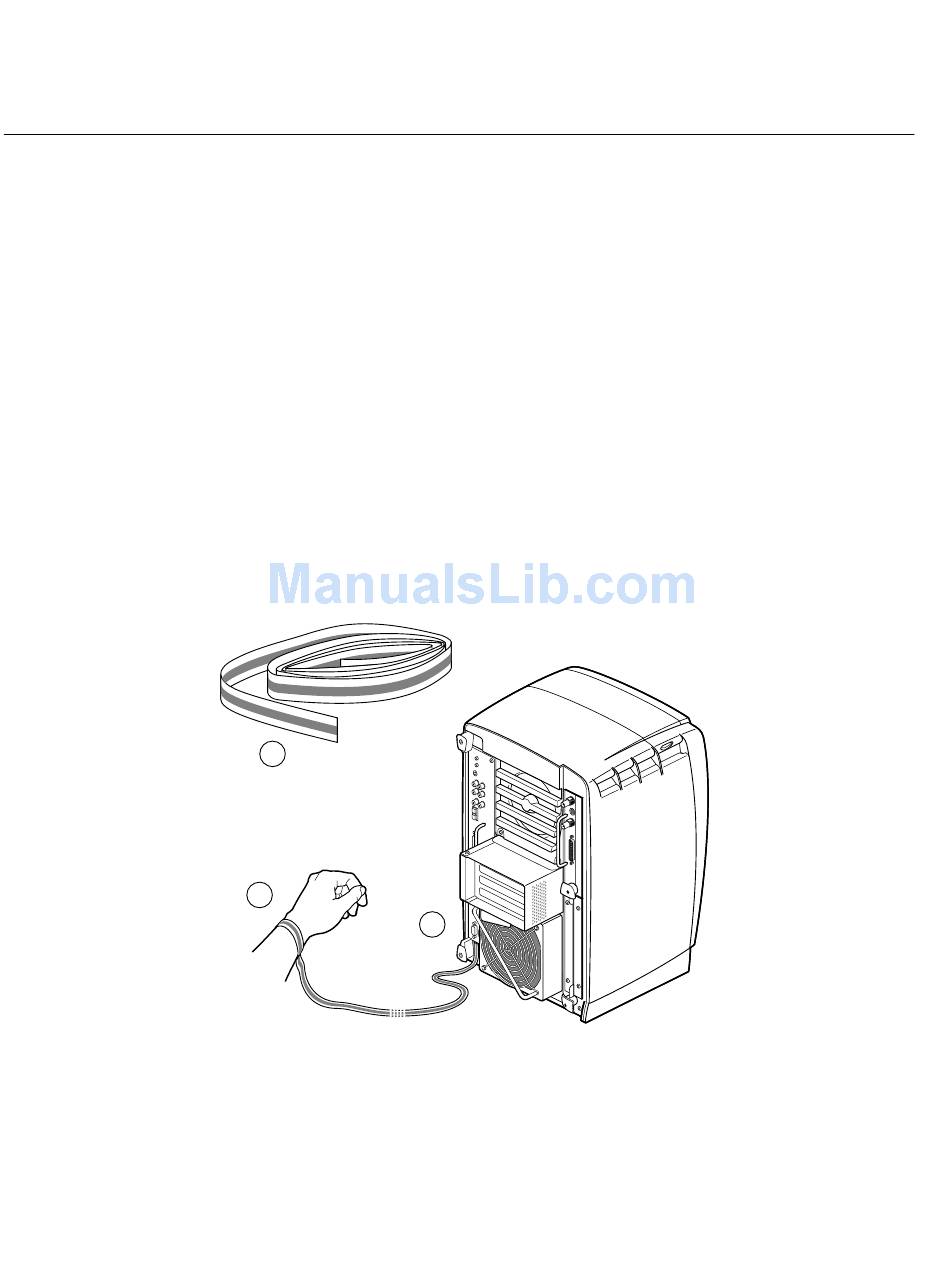

Figure 7-22 Attaching the Wrist Strap
C
