Locating the DIMMs on the System Module

If you did not power off your workstation, wait 5 minutes to allow the heat sinks to cool,
attach the wrist strap, and remove the system module, follow the instructions for
preparing your workstation beginning on page 32.
With the system module lying on a flat, dry, antistatic surface, locate the DIMM banks
and sockets, as shown in Figure 2-17 and Figure 2-18.
Caution - Do not touch gold plate
System module
Processor
Heat sink
Bank 1
Bank 2
Bank 3
Bank 4

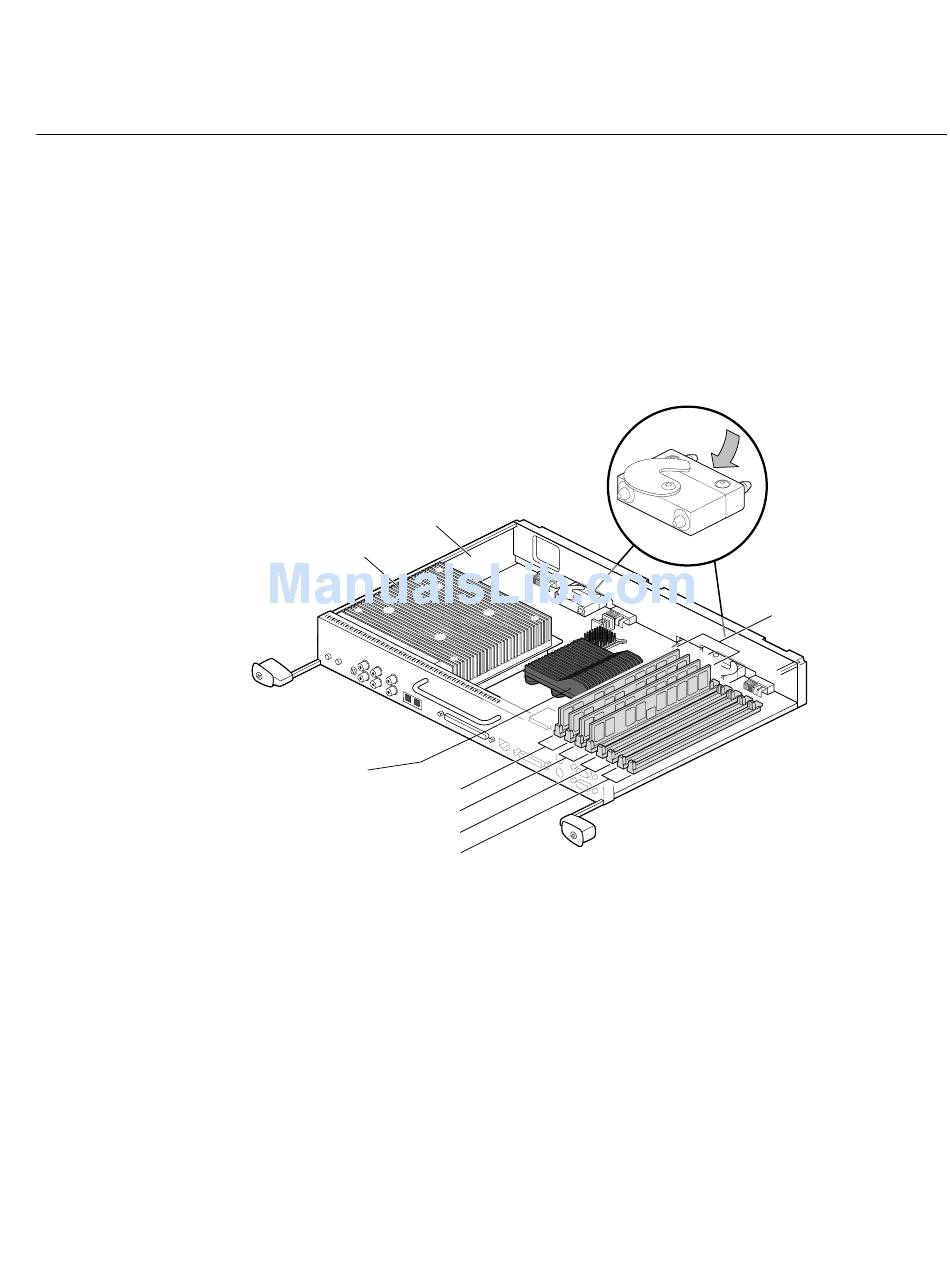

Locating DIMMs on the System Module (DIMM bracket not installed)
Figure 2-18
on compression connector
Installing and Removing Memory
DIMMs
49
