Chapter 4: Installing and Removing PCI Boards
92
6. Attach the blank panel to the I/O door with the screw you removed in step 1, as
shown in Figure 4-33.

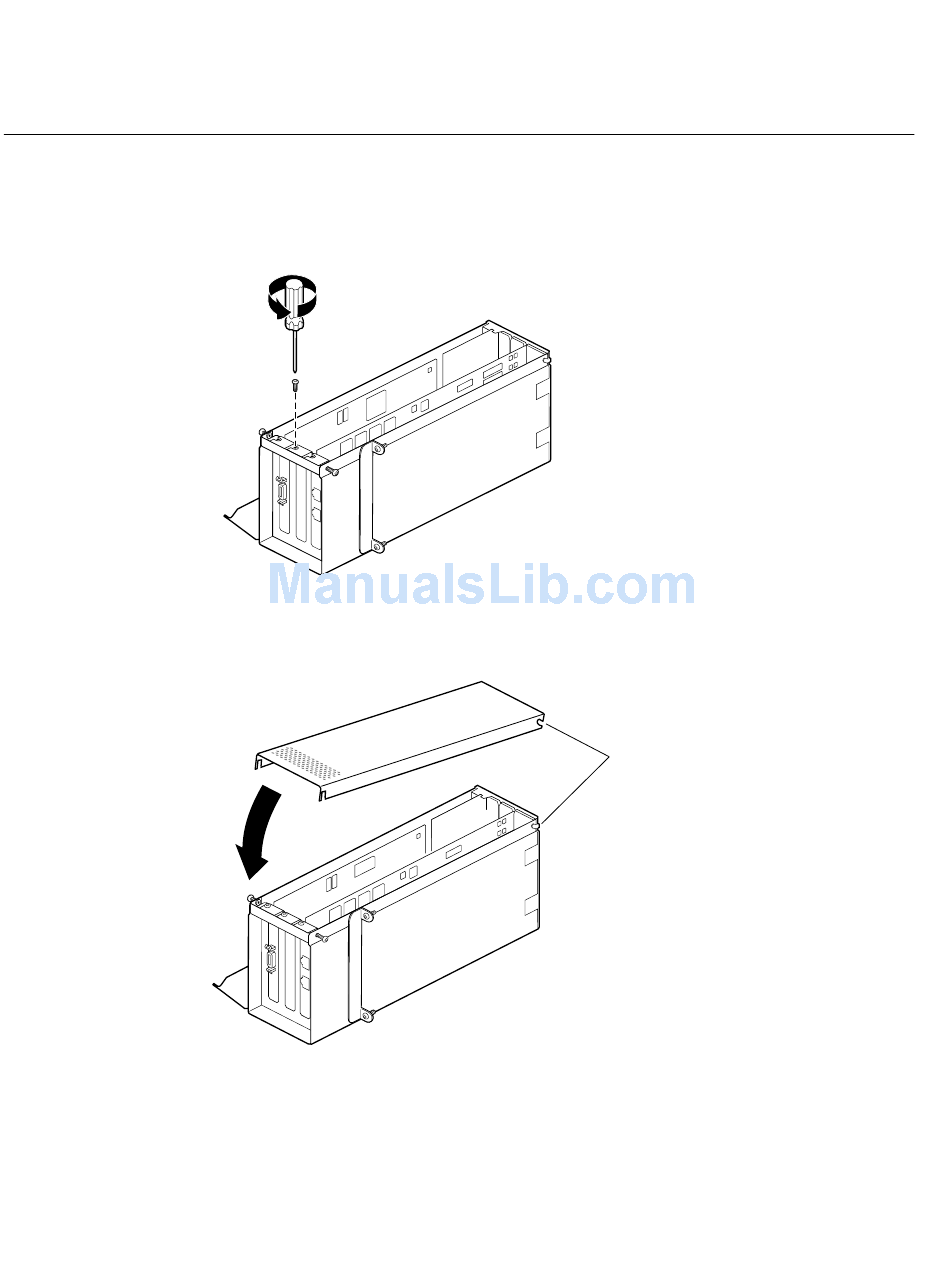

Figure 4-33 Attaching the Blank Panel to the I/O Door
7. Reinstall the PCI module door, as shown in Figure 4-34.
Figure 4-34 Reinstalling the PCI Module Door
Release hinge
