Installing Audio Devices

150
Configuring the Device
After you connect the serial device to your workstation, configure it for your system.
Choose Toolchest > Help > Online Books > Personal System Administration Guide, and
search for "Setting Up Serial Peripherals."
All Octane2 audio ports are located on the upper left side of the system module, as shown
in Figure 6-14.
Microphone
Speakers/headphones
Speaker power
Analog line level In/Out
Coaxial digital In/Out
Optical digital In
Optical digital Out

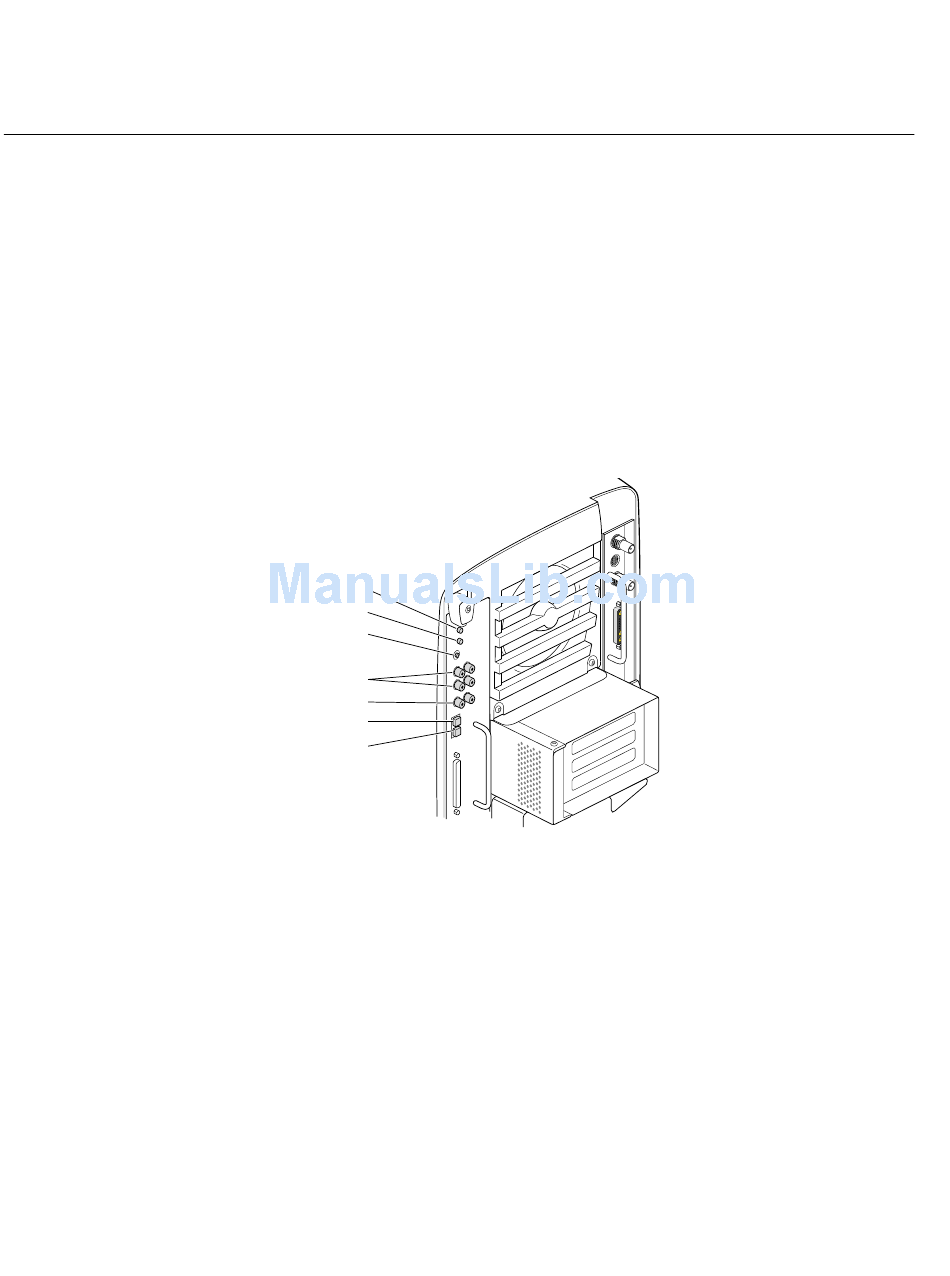

Figure 6-14 Audio Ports on the System Module
To connect an audio device, plug the device cable into the appropriate port.
Use the Audio Panel in Toolchest > Desktop > Control Audio to adjust the audio.
For additional audio information, choose Toolchest > Help, then choose one of the
following sources:
• Online Books > End User > Media Tools User's Guide
• How Do I (if you have a specific audio task you want to perform.
R L
I n
O u t
u t
I n O
