Installing an Option Board or Blank Panel
5. Remove the cap from the XIO compression connectors, as shown in Figure 5-17.
Keep the caps to protect the compression connector if you remove any XIO board.
Caution - Do not touch

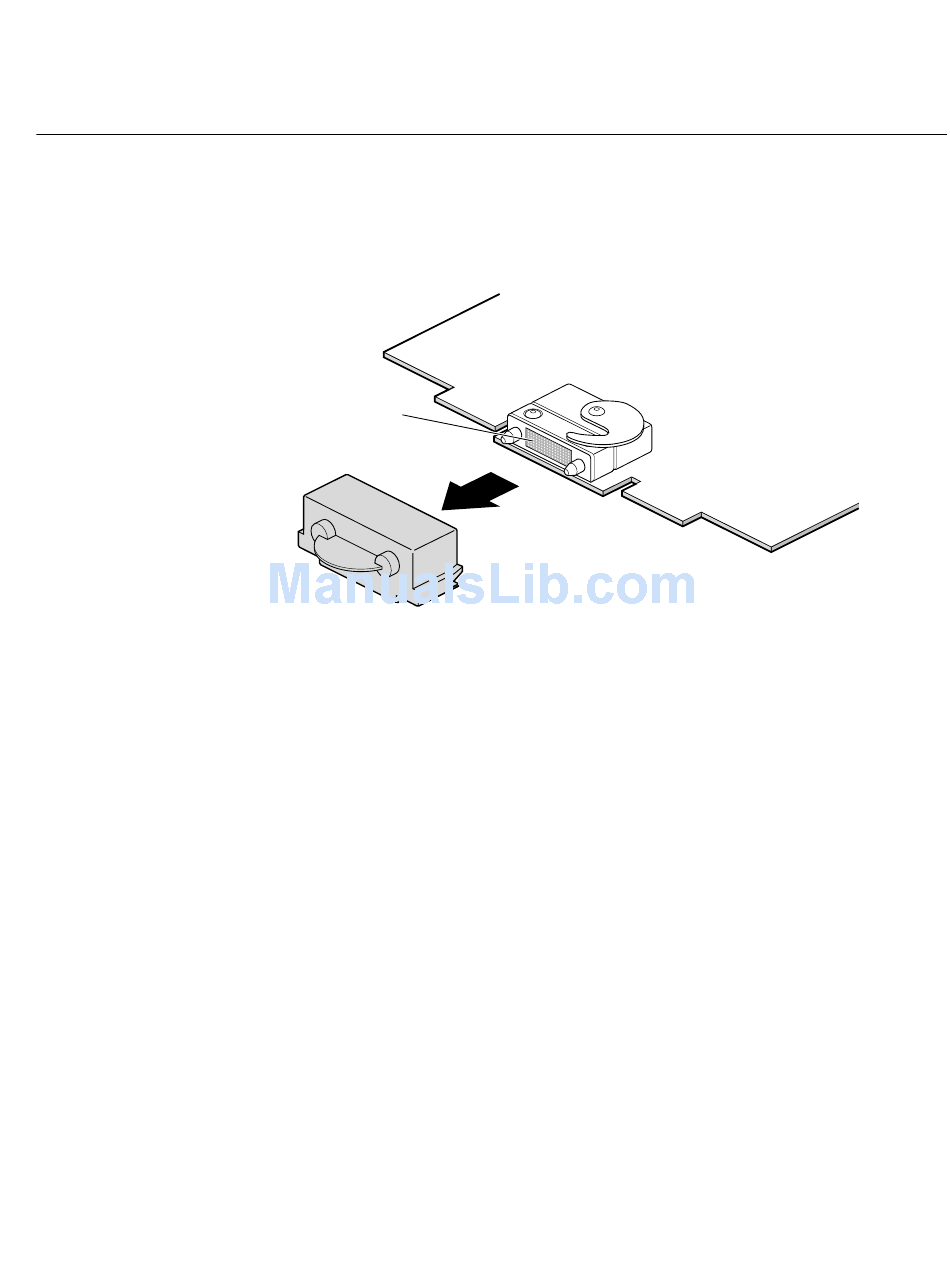

Removing the Cap from the XIO Board Compression Connector
Figure 5-17
123
