Chapter 1: Getting Started

Locking the Octane2 Workstation

18
The lockbar locks the bezel and system module to the chassis. Locking the bezel prevents
the option and system drives from being removed. Locking the system module prevents
the memory (DIMMs) and processor (CPU) from being removed.
The lockbar slot is located behind your workstation's front door.
1. Open the door of your workstation.
2. Locate the lockbar slot, as shown in Figure 1-16.

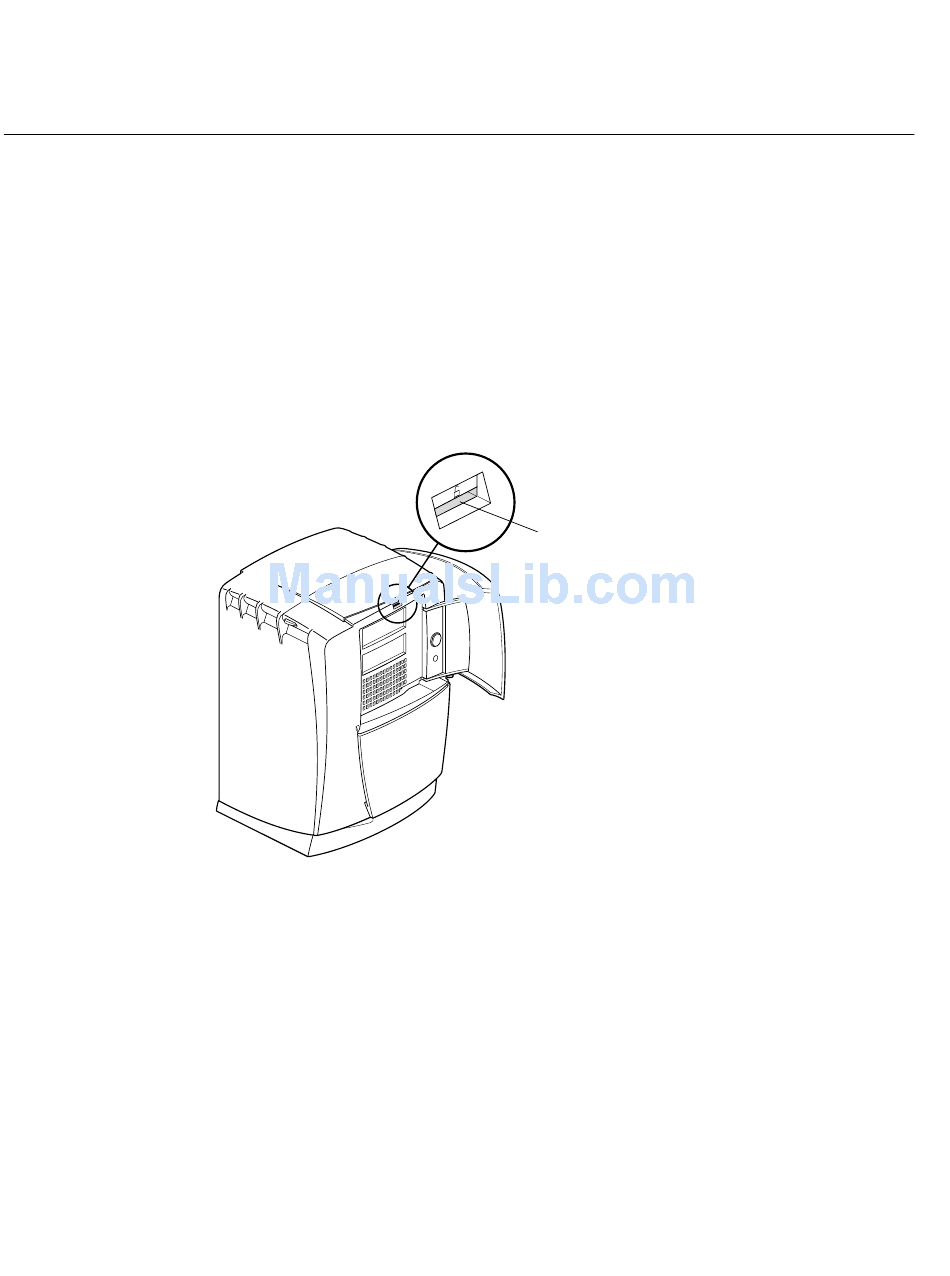

Figure 1-16 Locating the Lockbar Slot
Lockbar slot
