6. Close the I/O door, as shown in Figure 4-40.

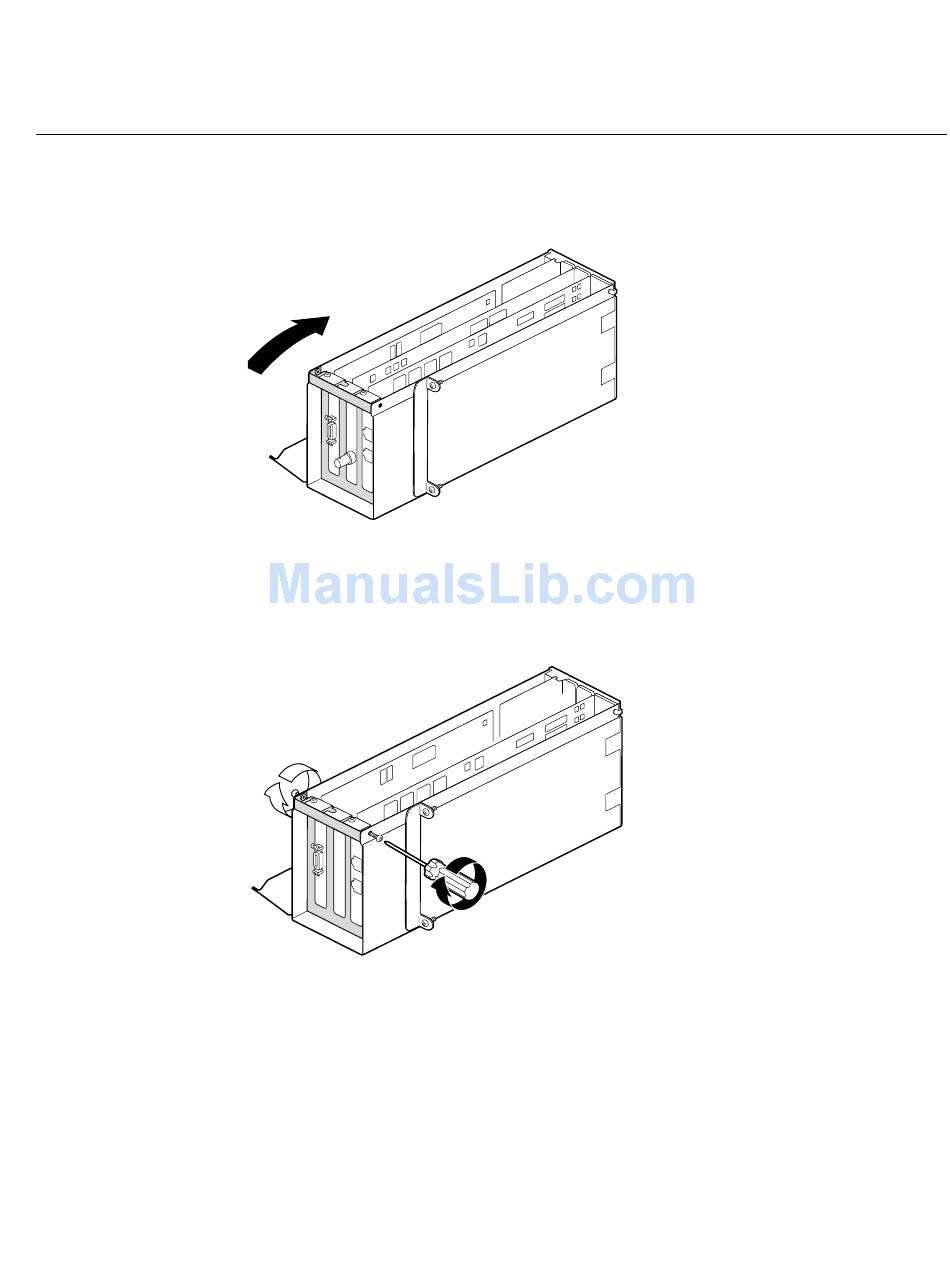

Figure 4-40 Closing the I/O Door
7. Insert, but do not tighten, the screws holding the I/O door to the PCI module, as
shown in Figure 4-41.
Figure 4-41 Inserting the I/O Door Screws
Removing a PCI Board
97
