Chapter 3: Installing and Removing the Power Supply

Installing the Power Supply

66
Follow these steps to install the new power supply:
1. Tilt the new power supply upward and plug the power cable into the power supply,
as shown in Figure 3-5.

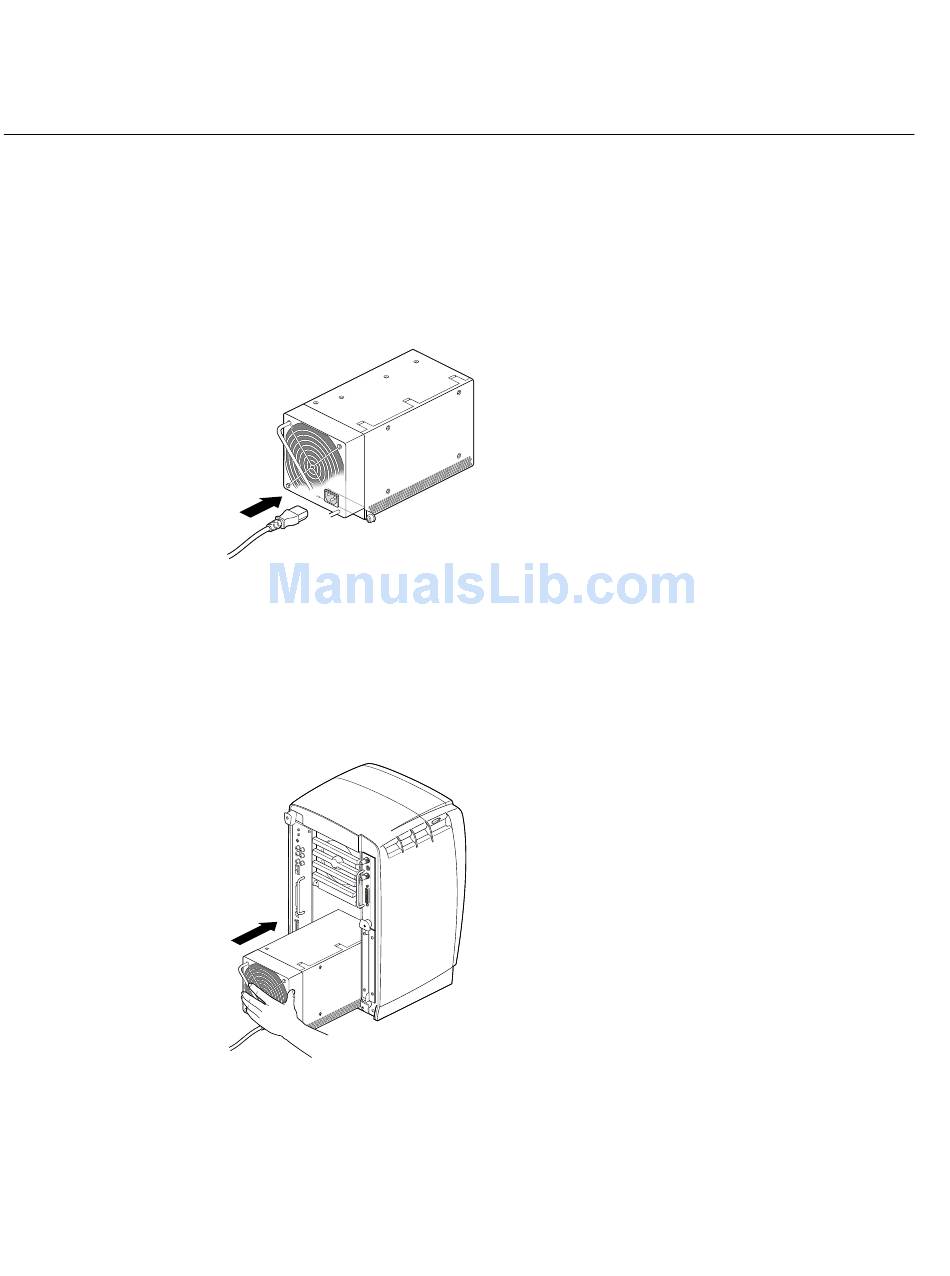

Figure 3-5 Plugging In the Power Cable
2. Slide the new power supply into your workstation, as shown in Figure 3-6.
Push on the power supply to firmly connect it to the frontplane.
Be sure the tabs (holding the screws) on the power supply are flush with the
Note:
chassis.
Figure 3-6 Sliding In the New Power Supply
