Serial Ports

007-4564-001
Keyboard and Mouse Port Pinout (continued)
Table A-4
Pin Assignment
5 Keyboard/mouse clock
6 (Reserved)
The workstation features two 9-pin serial ports. These ports are capable of transferring
data at rates as high as 230 KB/s. Other features of the ports include:
• Programmable data, parity, and stop bits
• Programmable baud rate and modem control

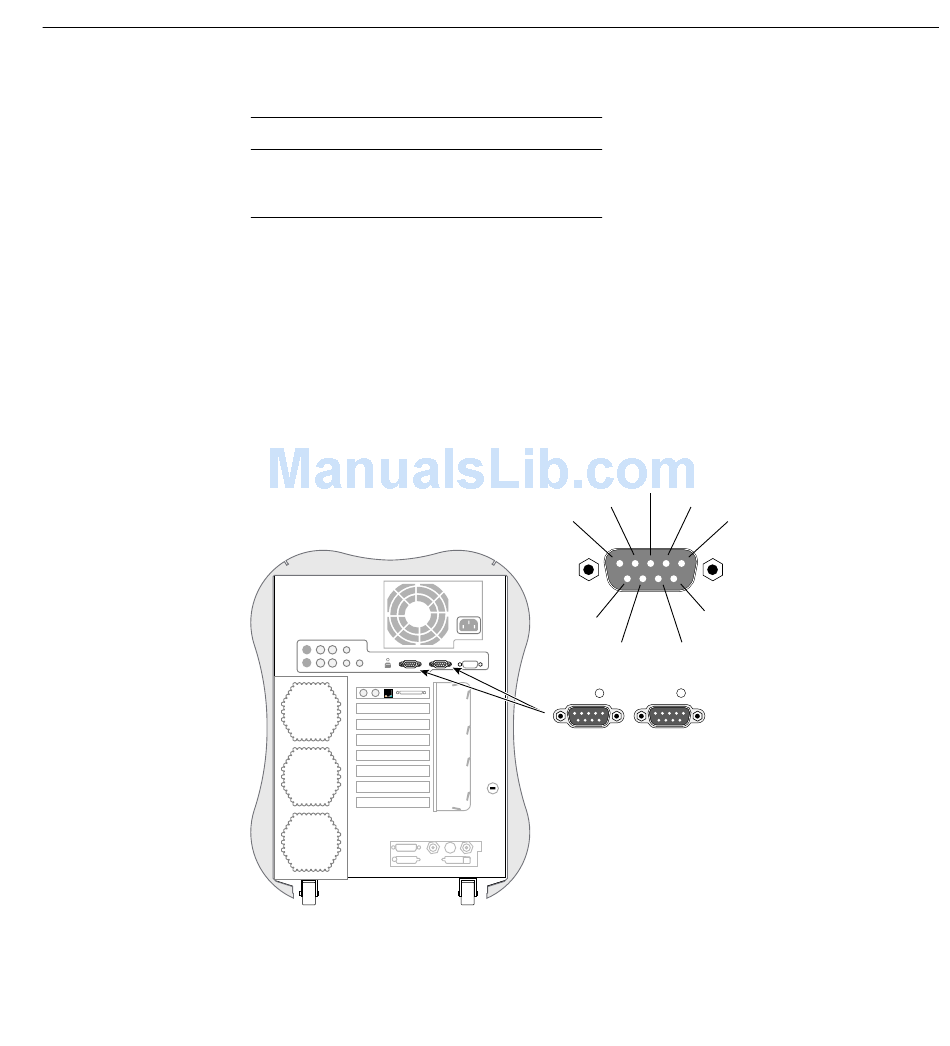

Figure A-3 shows a serial port.
Serial Port Pinouts and Locations
Figure A-3
Pin 3
Pin 2 Pin 4
Pin 1
Pin 6 Pin 9
Pin 7 Pin 8
IOIOI 2
IOIOI 1
I/O Port Specifications
Pin 5
