Chapter 7: Installing and Removing Internal Drives and Front Module Parts
178
The light module is located directly below the system drive. To replace the light module,
go to "Shutting Down and Powering Off the System" on page 161 and follow the
instructions through "Removing the Bezel." Then return to this section and follow the
instructions below.
1. Squeeze both top and bottom wings together at both ends of the light module and
gently pull straight back, as shown in Figure 7-20.
If the light module does not release, squeeze more firmly until it releases from the
workstation.
2. Discard the module.

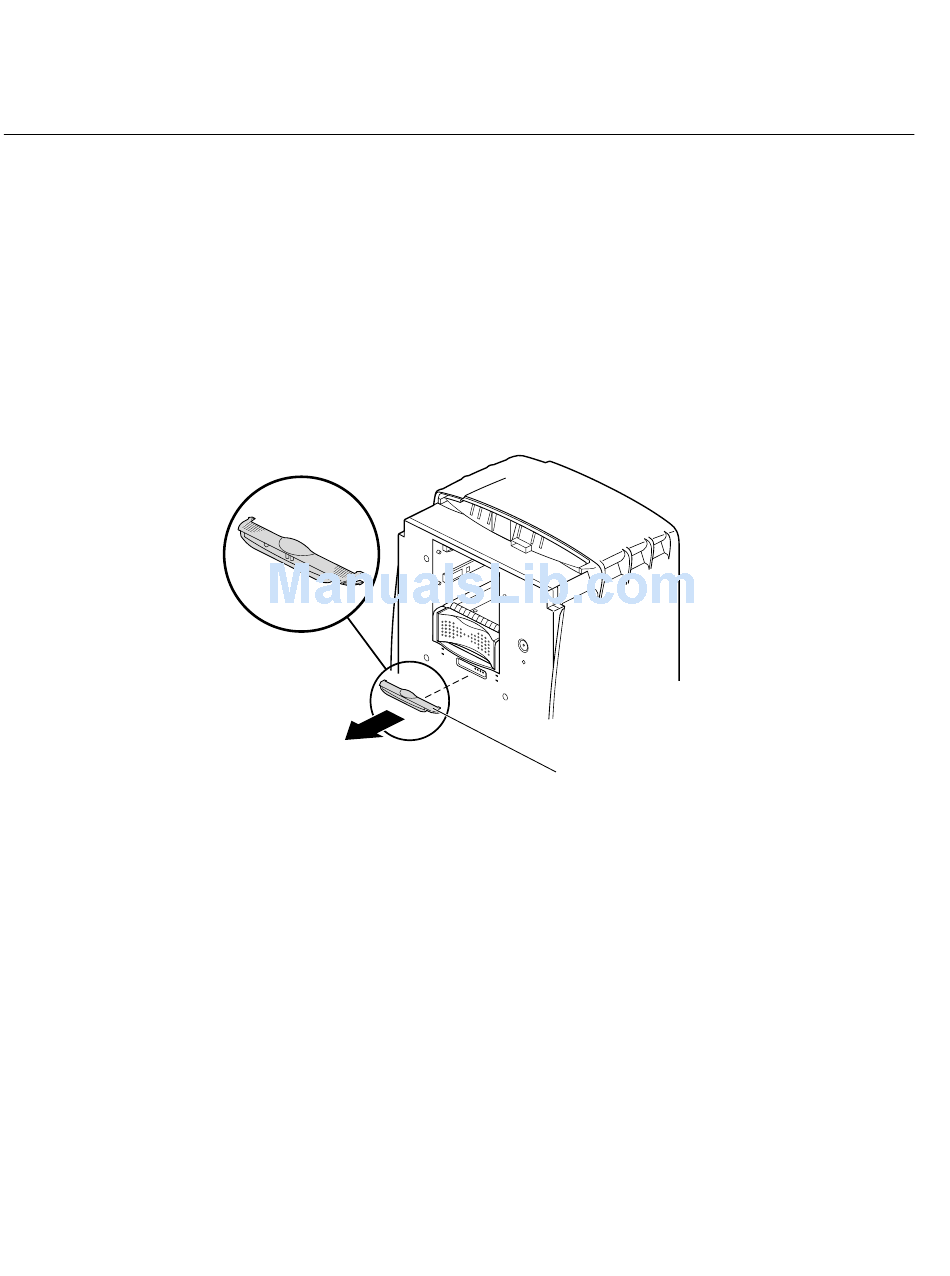

Figure 7-20 Removing the Light Module
Light module
