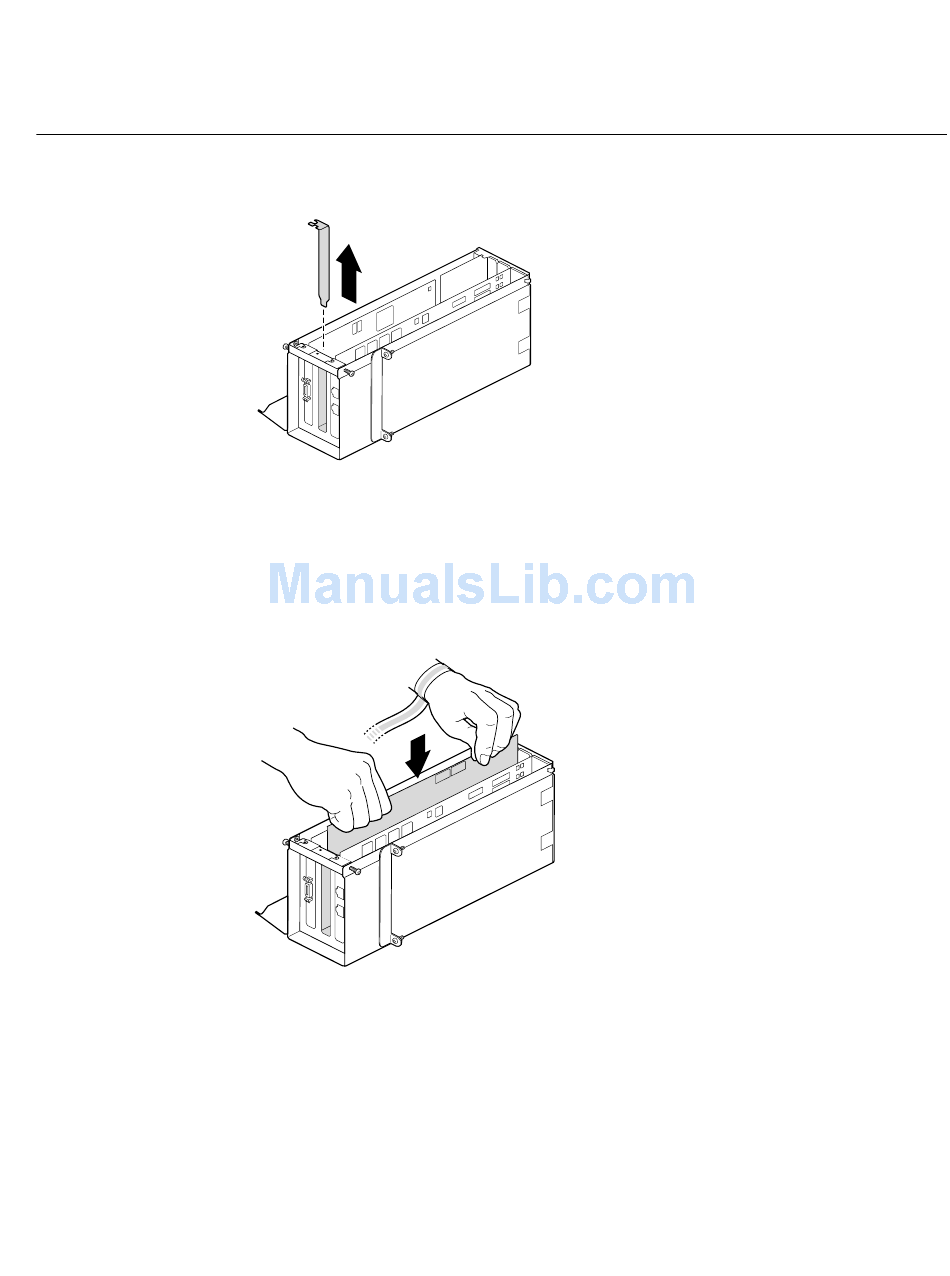

Figure 4-15 Removing The Blank I/O Panel; Figure 4-16 Inserting A Pci Board Into The Pci Module - Silicon Graphics OCTANE2 Owner's Manual

Removing the Blank I/O Panel
Figure 4-15
4. Insert the PCI board into the connector in the PCI module, as shown in Figure 4-16.
Push gently but firmly until the PCI board snaps into place.
If the board has an extra-long connector that makes it difficult to insert, skip
Note:
to the next section, "Opening the I/O Door for Extra-Long Connectors" on page 84."
Inserting a PCI Board into the PCI Module
Figure 4-16
Installing a PCI Board
