Installing The Serial Device; Figure 6-12 Locating The Serial Ports On The System Module; Table 6-5 Serial Port Assignment - Silicon Graphics OCTANE2 Owner's Manual

Chapter 6: Installing and Removing External Devices
148

Installing the Serial Device

To install a serial device, follow these steps:
1. Locate the serial ports on the back of your workstation, as shown in Figure 6-12.
Serial ports are labeled
2. Unpack the serial device and cables.
1
2
Serial ports

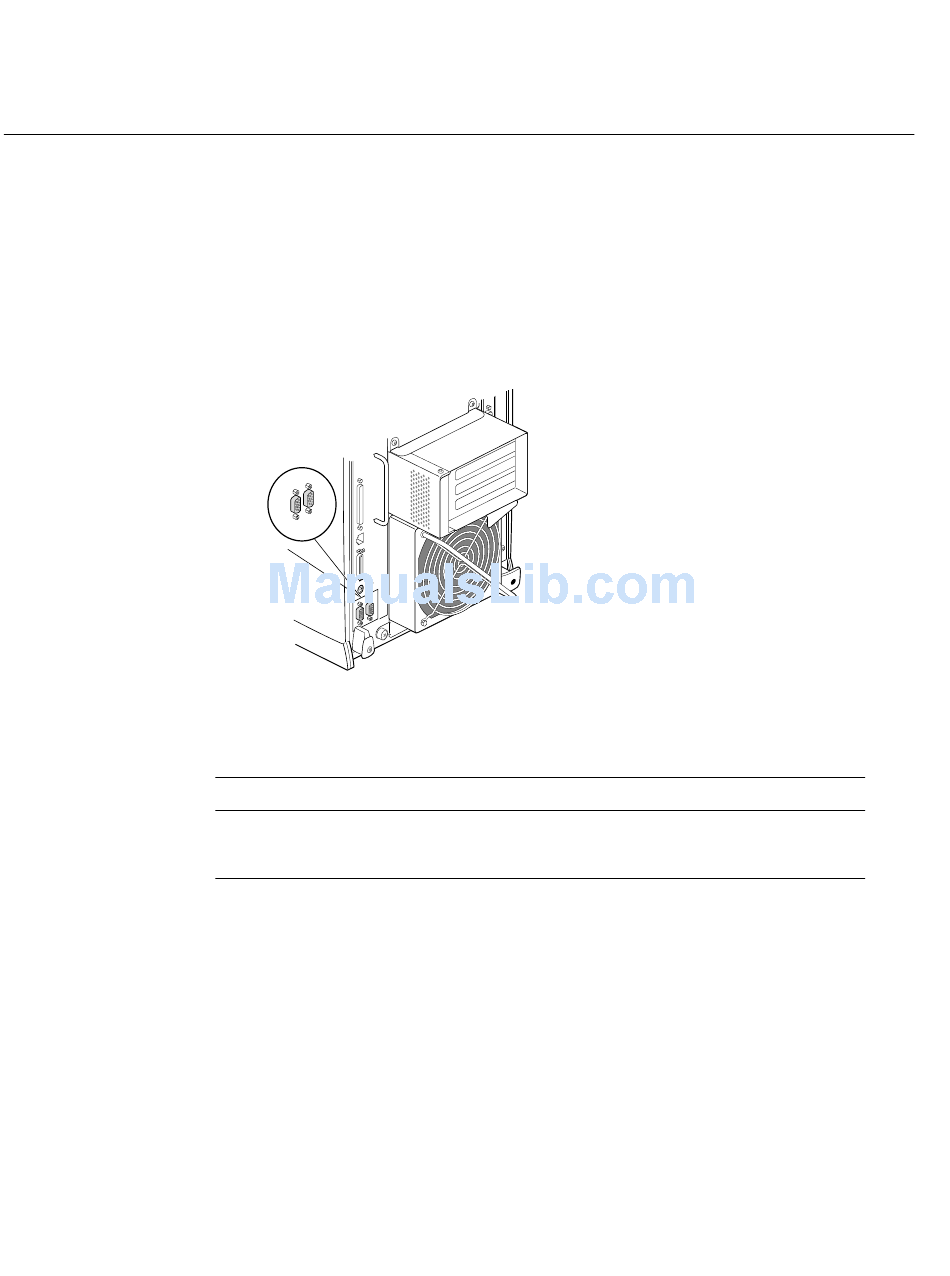

Figure 6-12 Locating the Serial Ports on the System Module
Table 6-5 Serial Port Assignment
If you are installing:
A console terminal
Any other serial device
and and are DB9 connectors.
1 2
Use:
Serial port 1
Either serial port
