Attaching the Wrist Strap

Caution: The components inside your workstation are extremely sensitive to static
electricity. Always wear the wrist strap when you replace parts inside your workstation.
1. Unroll the first two folds of the band (see A in Figure 2-4).
2. Wrap the exposed adhesive side firmly around your wrist (B), unroll the rest of the
band, then peel the liner from the copper foil at the opposite end.
3. Attach the copper foil to any exposed electrical ground, such as a metal part of the
workstation (C).
A
Unroll
B

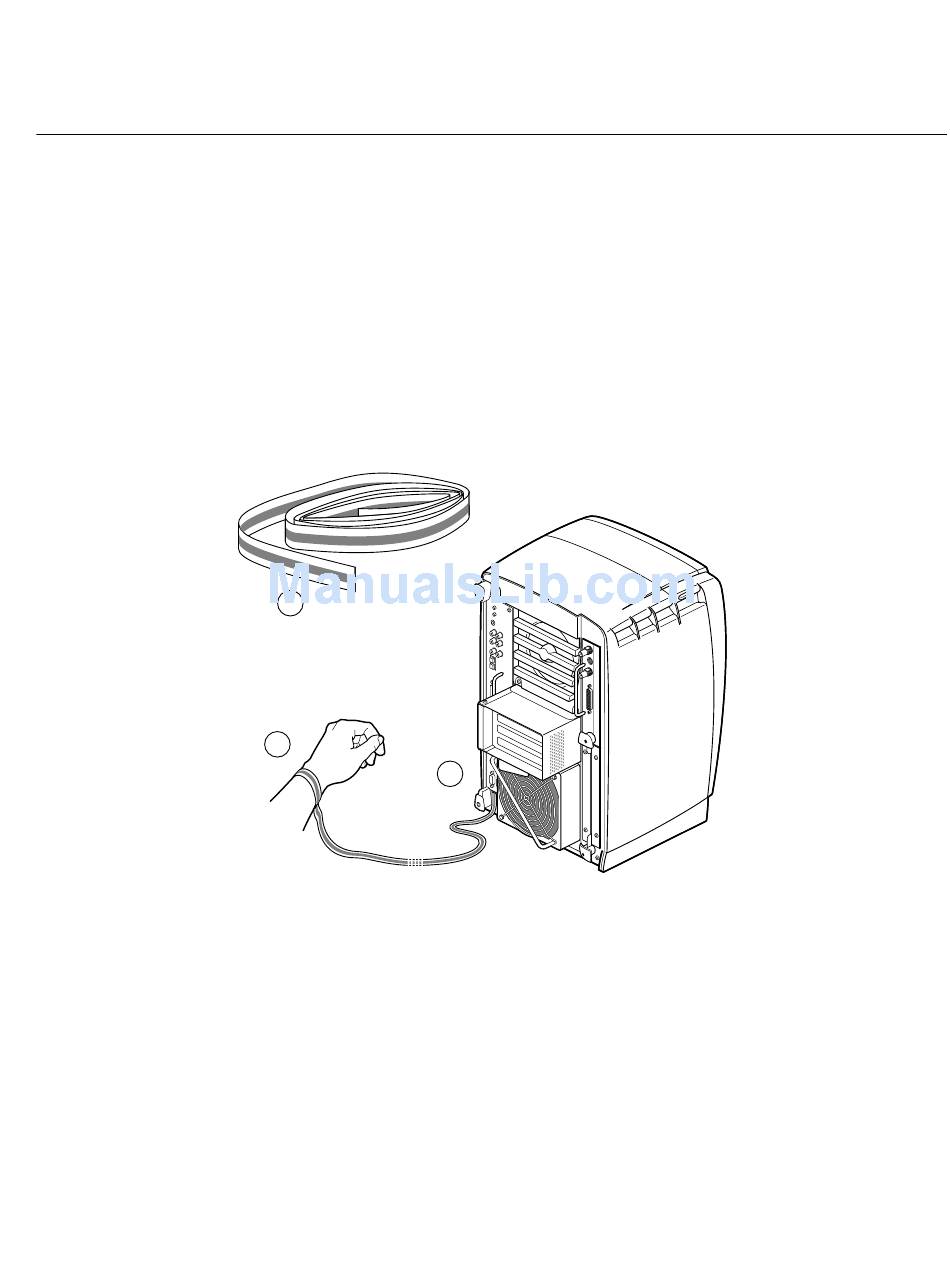

Figure 2-4 Attaching the Wrist Strap to the Chassis
C
Attaching the Wrist Strap
35
