4. On the cable with double connectors on each end, locate the end with one female
connector and one male connector.
5. Attach the female power connector to the middle port on the right (active) speaker,
as shown in Figure 6-17.
6. Attach the male connector to the port labeled R on the right (active) speaker.
Speakers
Power
Right (active) speaker

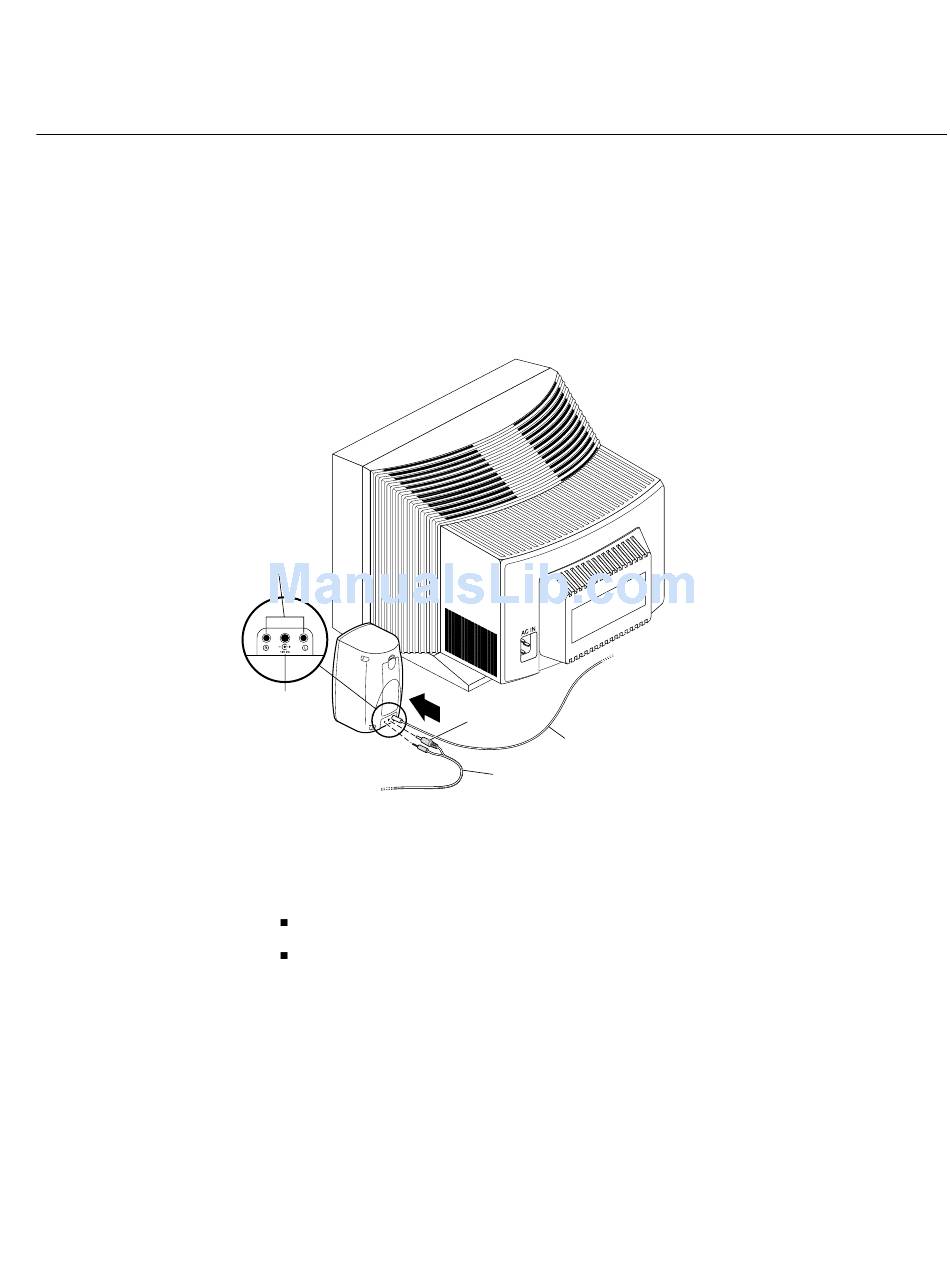

Figure 6-17 Attaching the Speaker Cables to the Active Speaker
7. Attach the other end of the speaker power and audio cable to your workstation as
follows:
Attach the smaller tipped power connector to the speaker power port.
Attach the larger tipped connector to the speaker port, as shown in Figure 6-18.
8. Press the power button on the front of the active speaker.
Power
To left speaker
To speaker port
on workstation
Installing Audio Devices
153
