Chapter 4: Installing and Removing PCI Boards

Opening the PCI Module

78
If you removed the PCI module from your workstation, go to step 1, below. If the PCI
module is still installed in your workstation, go to "Preparing the Workstation" on
page 72 and follow the instructions through removing the PCI module.
1. Turn the PCI module on its side, as shown in Figure 4-11.
2. Loosen the screws that secure the PCI module door, but do not remove them.

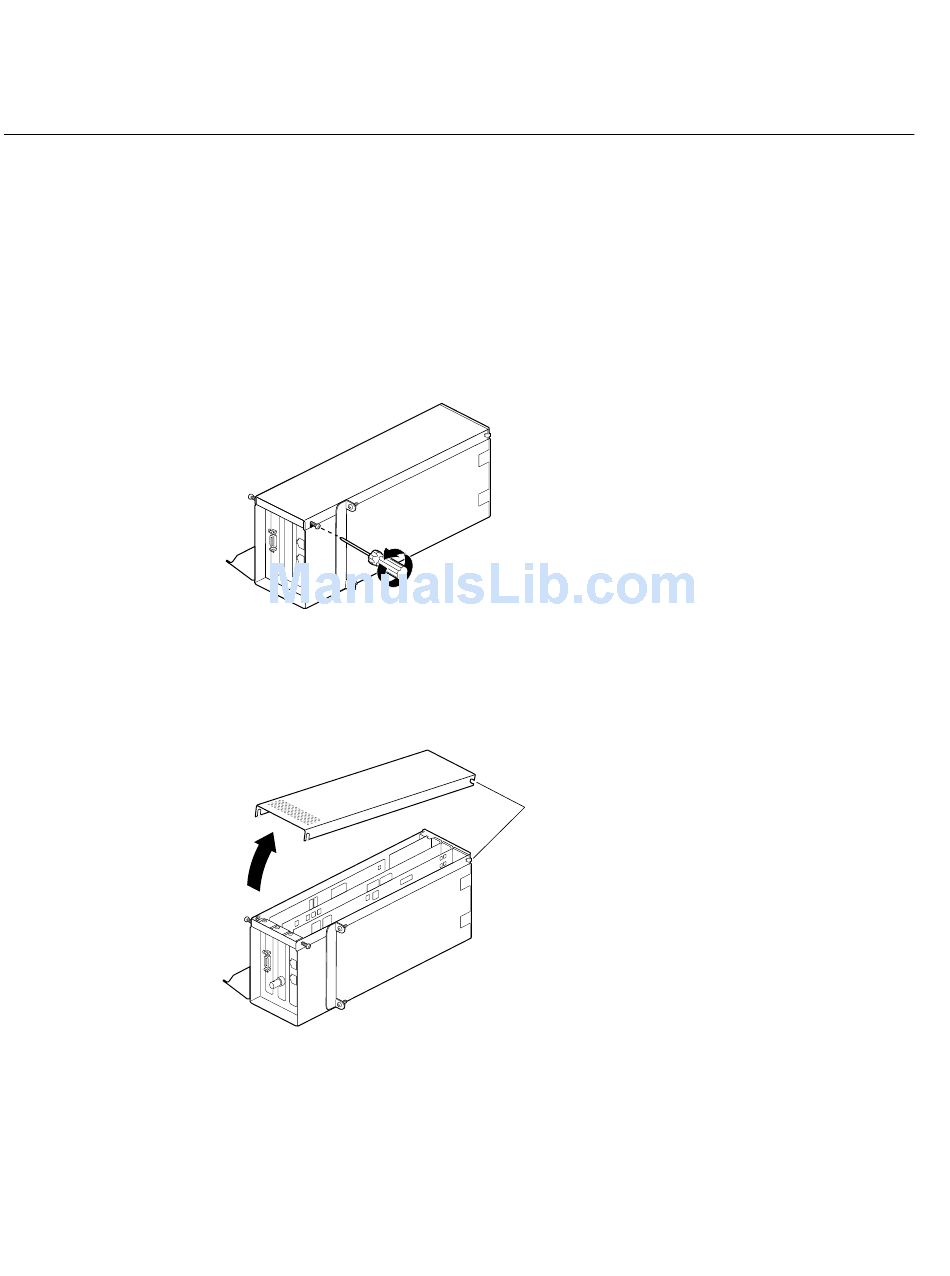

Figure 4-11 Loosening the Screws on the PCI Module
3. Pull the PCI module door up and off, as shown in Figure 4-12.
4. The release hinge allows the module door to slide up and off.
Opening and Removing the PCI Module Door
Figure 4-12
Release hinge
