Chapter 6: Installing and Removing External Devices
136

Preparing a SCSI Device for Cabling

1. If you are daisy-chaining a new SCSI device to a connected SCSI device, remove the
terminator from the connector on the last device in the current chain by squeezing
the clips on both sides of the terminator and pulling it off. See Figure 6-3.
2. If the new SCSI device is the only SCSI device, do not remove its terminator.
If no SCSI devices are connected to your workstation, termination is not
Note:
required on the workstation's SCSI port.

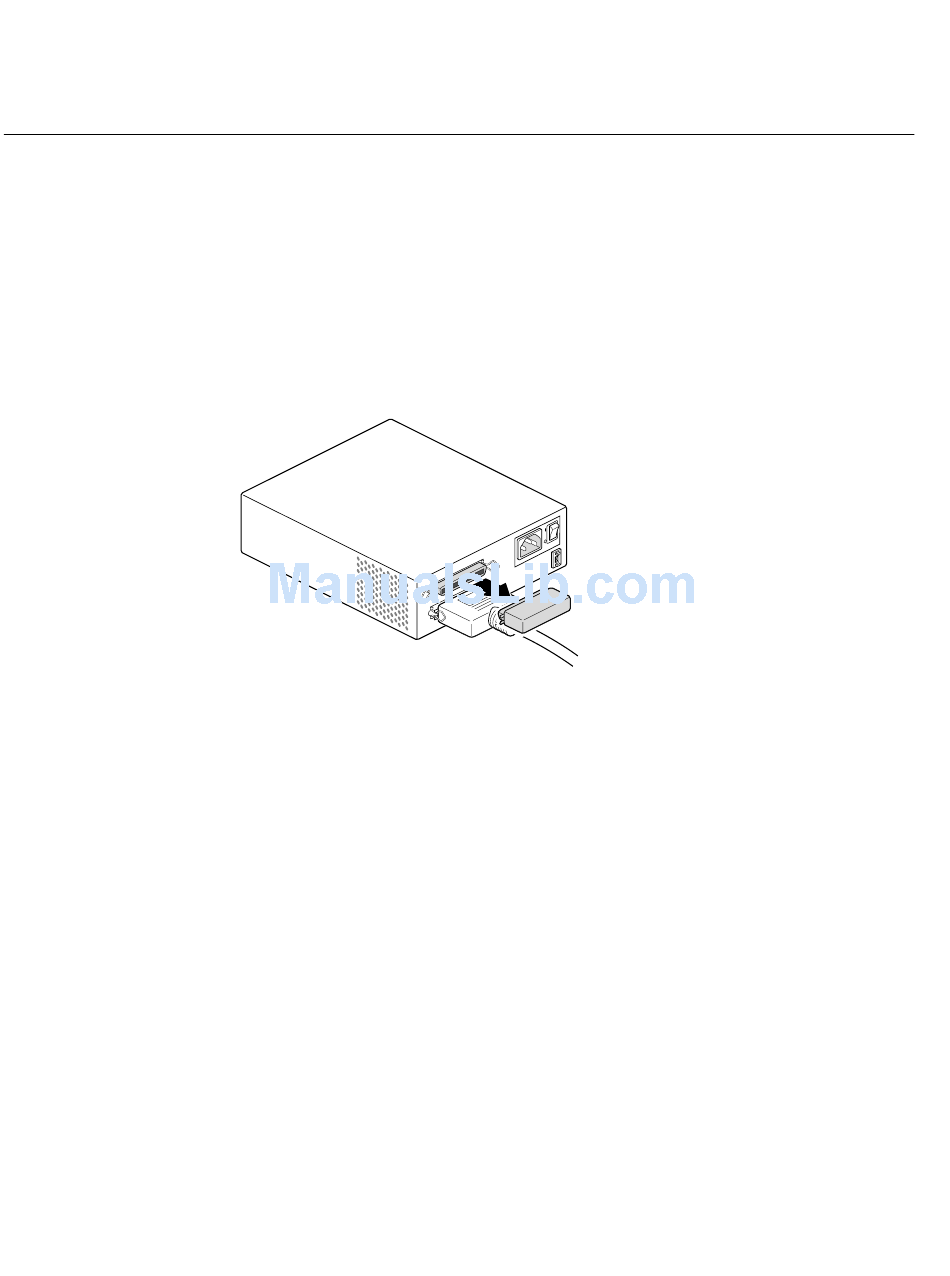

Removing the Terminator from the Last Device on the Daisy Chain
Figure 6-3
