Figure 6-8 Connecting The Terminator And Power Cable To An External Device - Silicon Graphics OCTANE2 Owner's Manual

2. Connect the terminator to the last device in the daisy chain (see A in Figure 6-8).
Make sure you secure the clips on each side of the terminator. The terminator is
designed to fit in only one direction.
3. Connect power cables (B) to each device and to an electrical outlet.
Remember to turn on the external SCSI devices first, then turn on your
Note:
workstation, to make sure your system recognizes the devices.

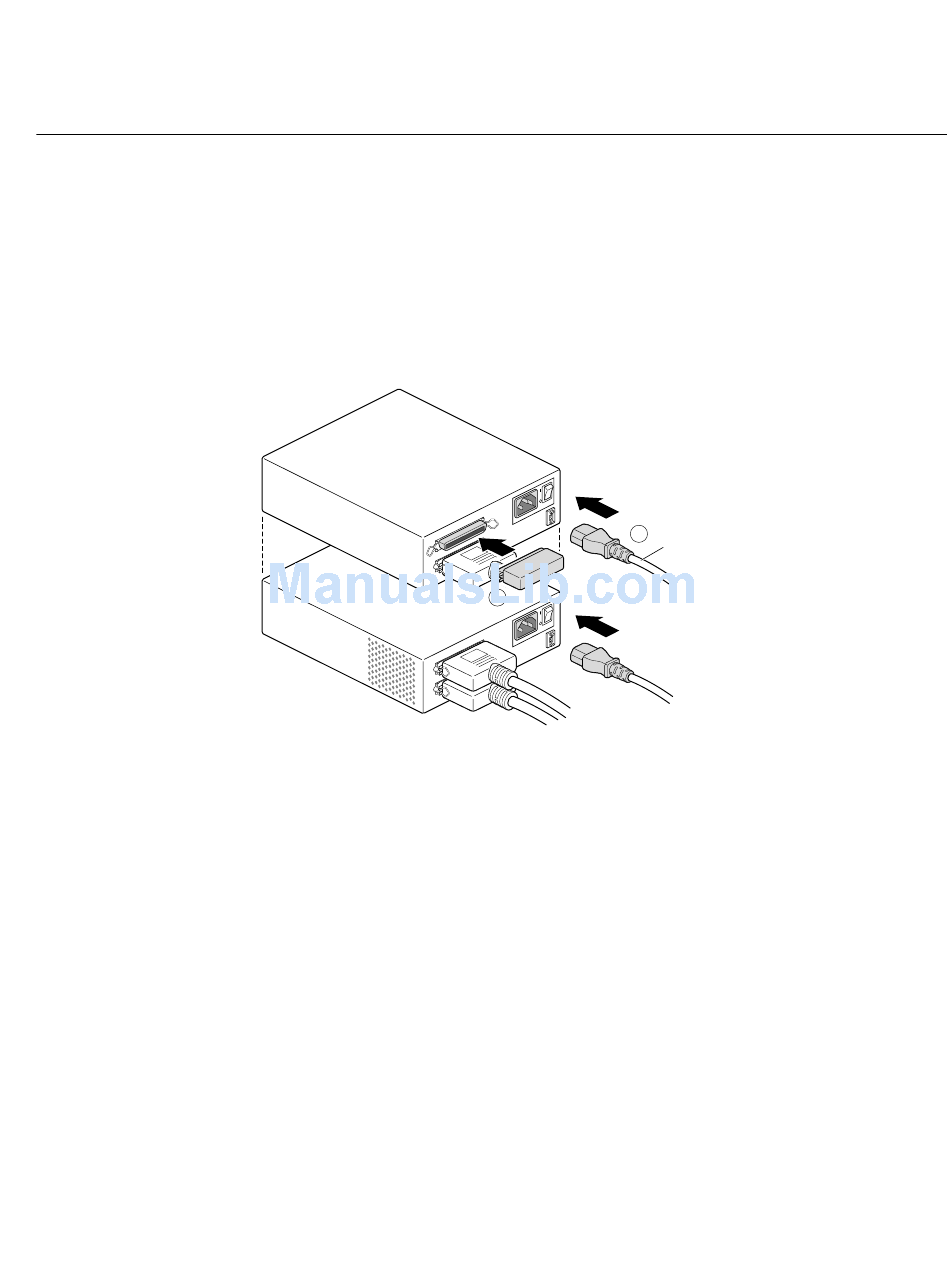

Figure 6-8 Connecting the Terminator and Power Cable to an External Device
You are now ready to power on your workstation and verify that your system recognizes
the external SCSI devices.
