Chapter 1: Getting Started
4
Back View
System module
Microphone
Speakers/headphone
Speaker power
Analog line level audio
Coaxial digital audio in/out
Optical digital audio - in
Optical digital audio - out
SCSI
Ethernet
Parallel
Mouse
Keyboard
Serial ports

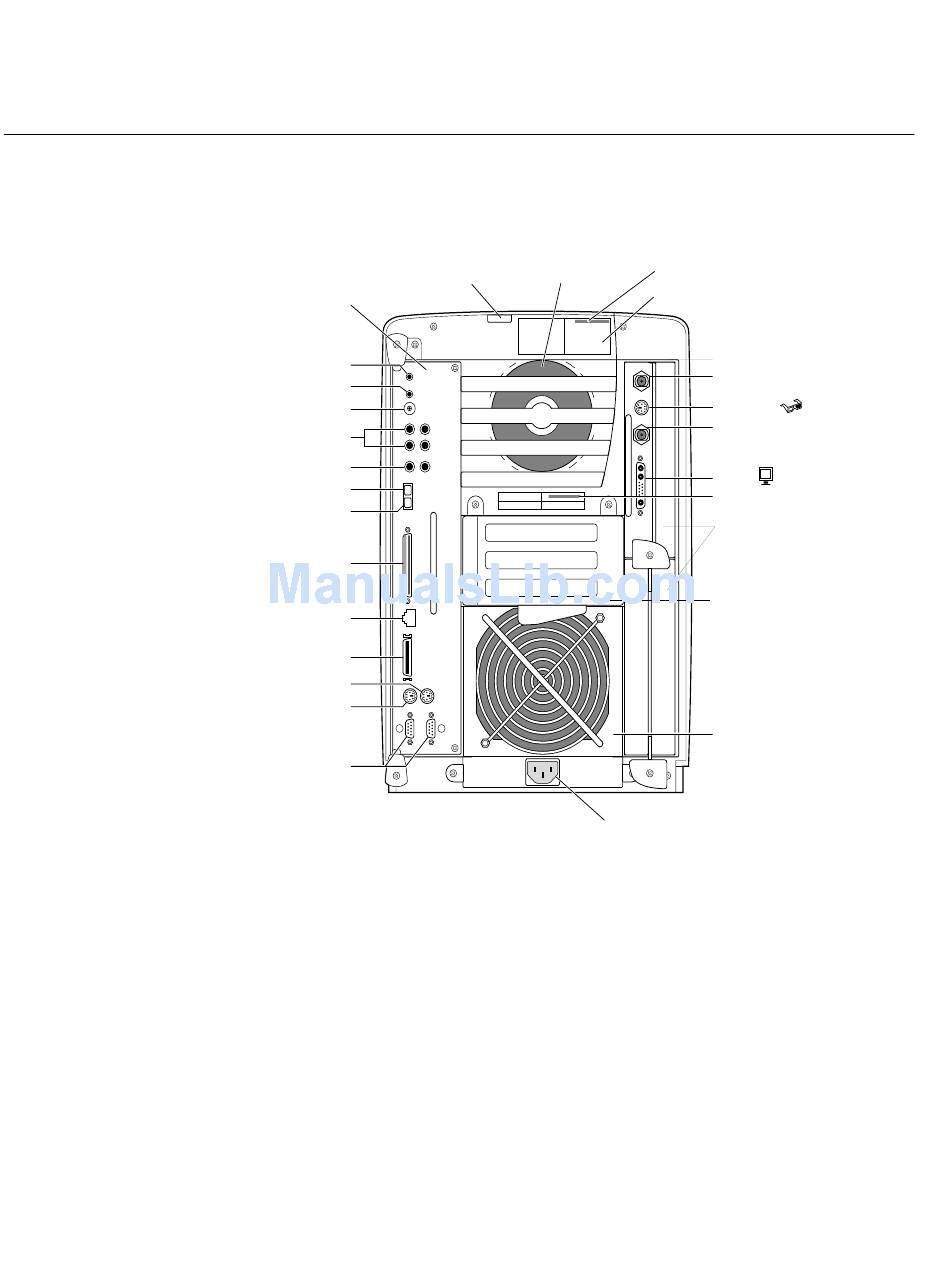

Figure 1-2
Back View of the Octane2 Workstation
Lockbar
Fan
R
L
In Out
1
2
3
2
1
Model/CMN number
System label
Tri Module
Genlock
StereoView
Swap Ready
(see note below)
Monitor
Serial number
XIO boards
(graphics and
communications)
PCI module
Power supply
Power cable
