Installing Secondary (Option) Internal Drives

To prepare your workstation for installation of a secondary internal drive, see "Shutting
Down and Powering Off the System" on page 161, then follow the instructions for
"Removing the Bezel" on page 162.
The secondary drive bays are the two top drive bays, as shown in Figure 7-6. You can
install an internal drive in either bay.
The system automatically assigns an address to an internal drive as follows:
• The system drive is SCSI ID 0-1
• The drive directly above it is SCSI ID 0-2
• The upper option drive is SCSI ID 0-3
Option drive bays
System drive
Light module

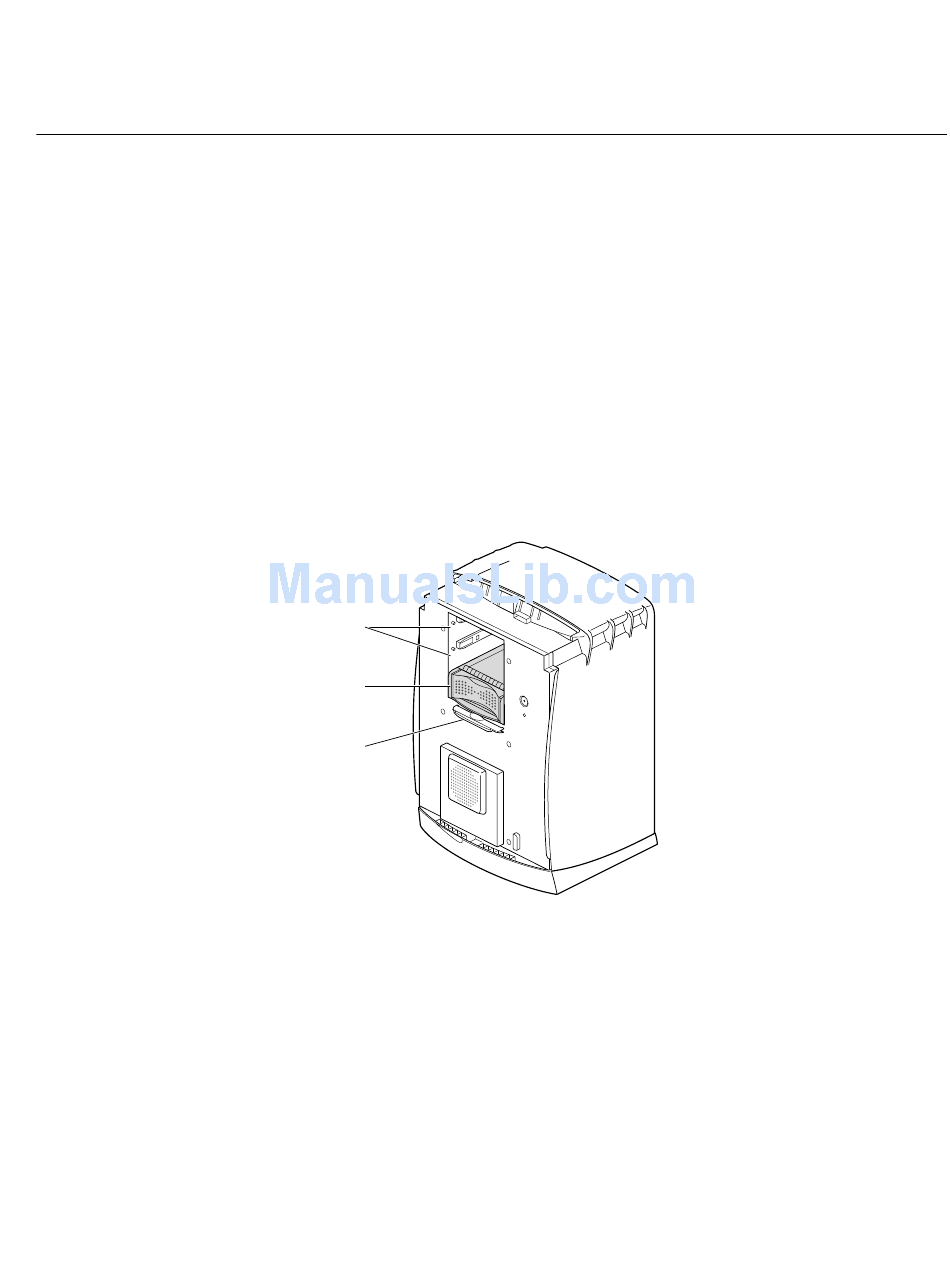

Figure 7-6 Identifying the Secondary (Option) Drive Bays
