Chapter 4: Installing and Removing PCI Boards
86
4. Insert the PCI board into the connector in the PCI module, as shown in Figure 4-23.
Press gently but firmly until the board snaps into place.

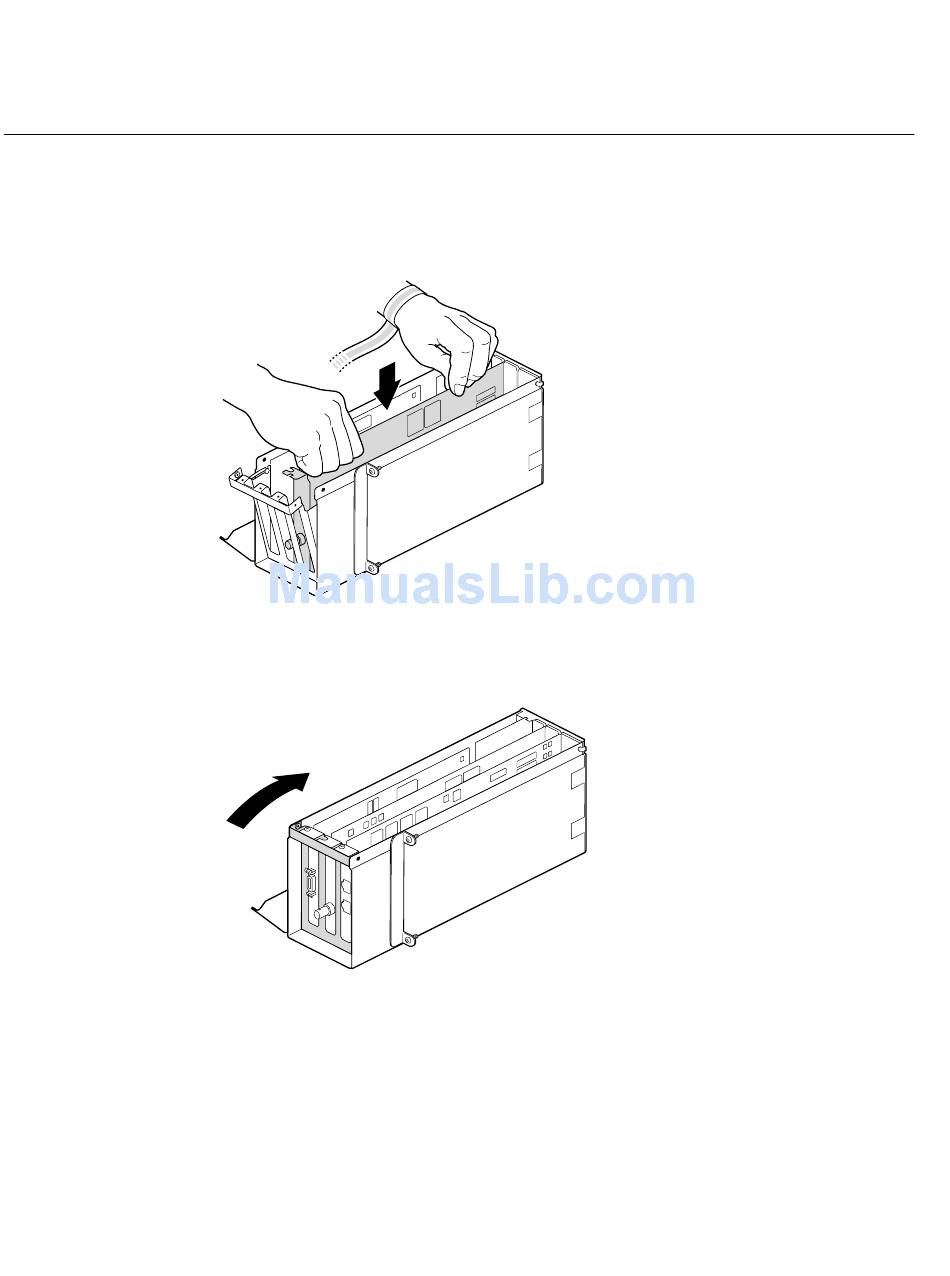

Figure 4-23 Inserting a PCI Board with an Extra-long Connector
5. Close the I/O door, as shown in Figure 4-24.
Figure 4-24 Closing the I/O Door
