Appendix B: Technical Specifications
228
Ethernet 10-Base-T/100-Base-T Port
The Octane2 workstation autoselects the speed and type (duplex vs. half duplex) at
bootup, based on what it is connected to.

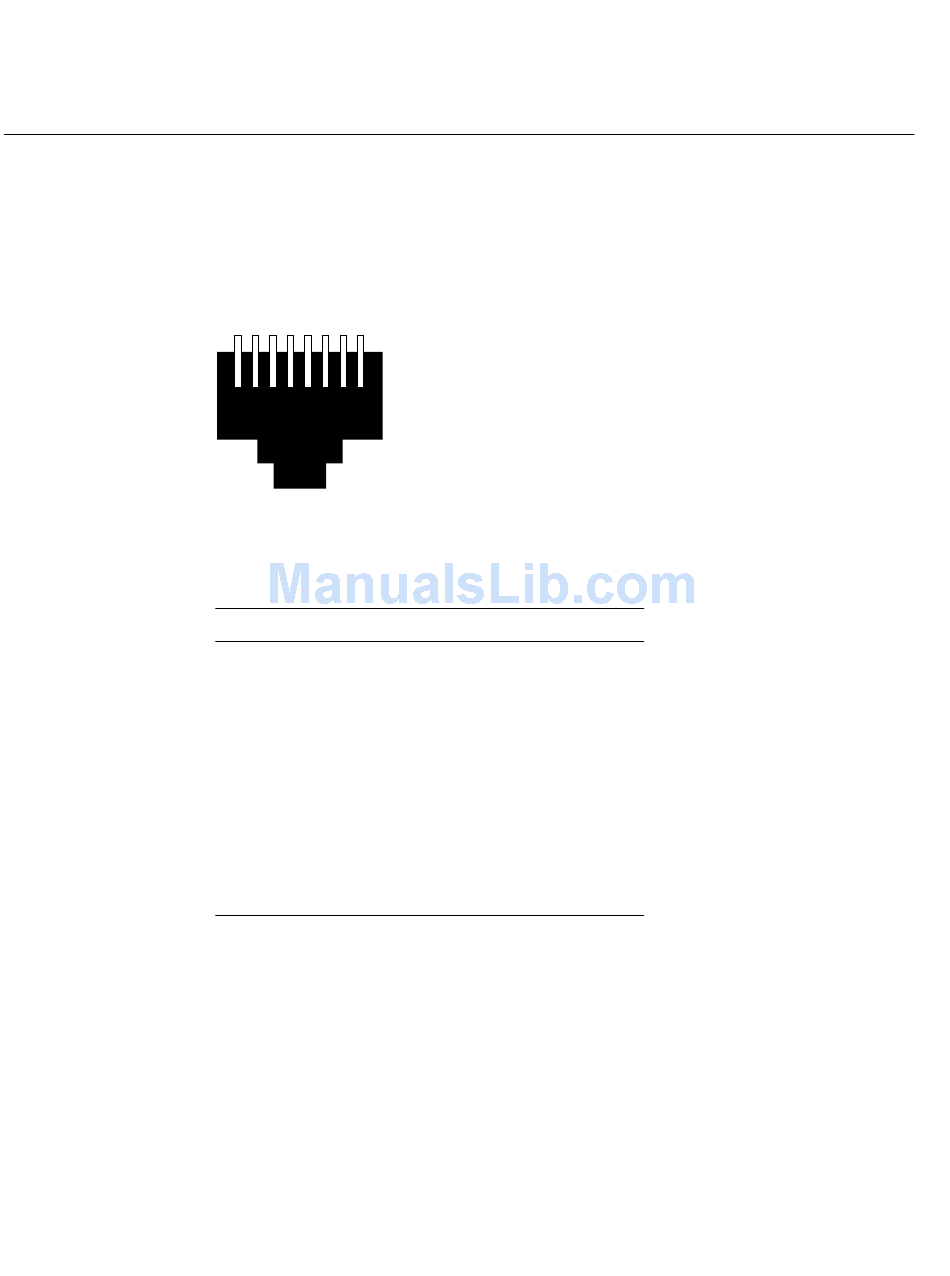

1 2 3 4 5 6 7 8
Table B-5 shows the cable pinout assignments for the Ethernet 10-Base-T/100-Base-T
port.
Table B-5
Ethernet 10-BASE-T/100-BASE-T Port Pinout
Pin
Assignment
1
Transmit+
2
Transmit–
3
Receive+
4
(Reserved)
5
(Reserved)
6
Receive–
7
(Reserved)
8
(Reserved)
