Installing the Microphone

Attach the microphone to your workstation as follows:
1. Place the microphone cord through the slot in the microphone base.
2. Slide the microphone into the base, as shown in Figure 6-15.
3. Place the microphone on top of the monitor (in the center, near the front).
4. Drape the cord over the back of the monitor.
Draping the cord over the side of the monitor causes the microphone to point away
from the user, reducing the quality of the sound.
5. Connect the microphone cable to the microphone port on your workstation.
For pinout and technical specifications, see Appendix B.
Microphone

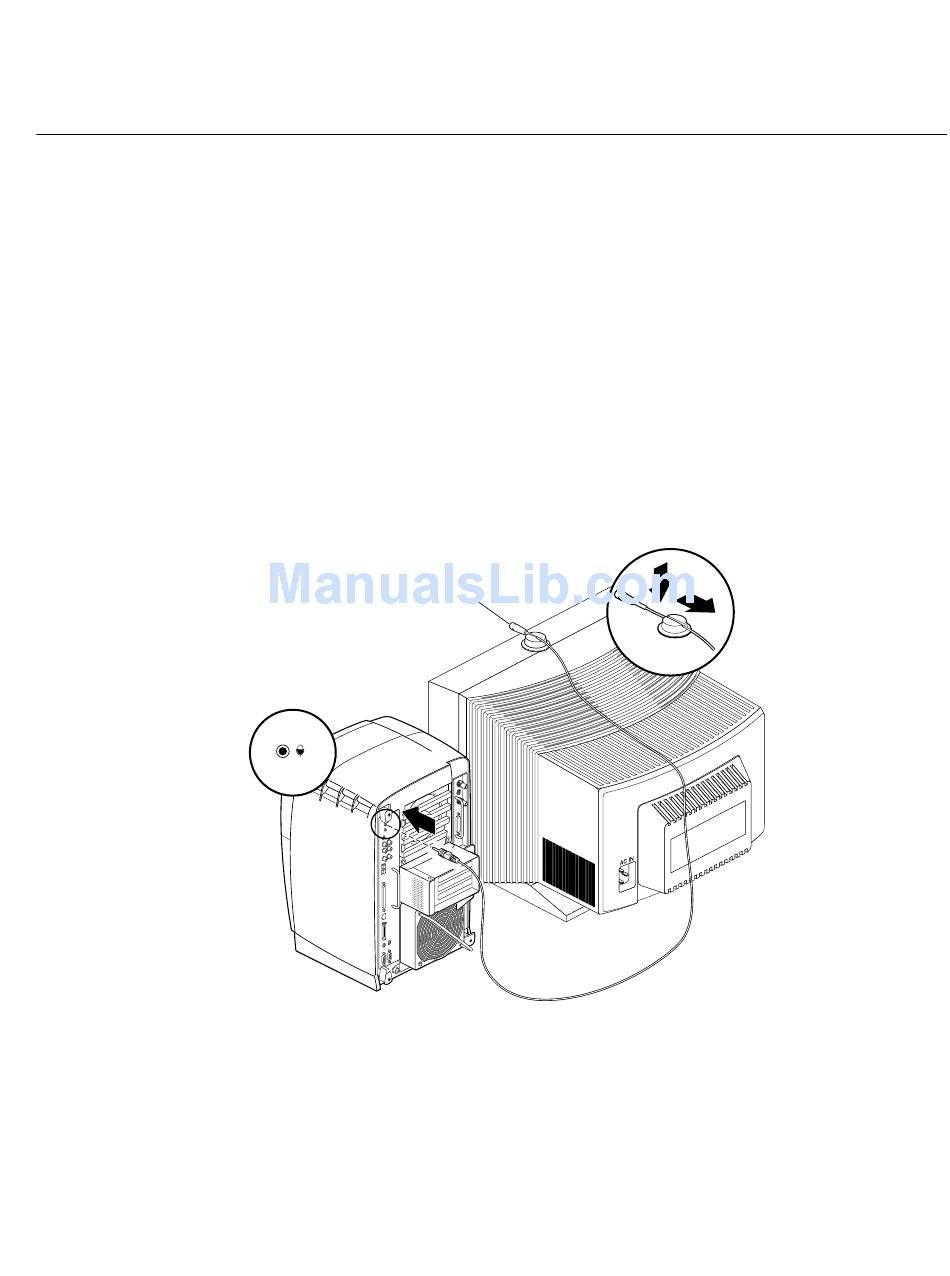

Figure 6-15 Installing the Microphone
