Chapter 2: Installing and Removing the CPU and Memory
44

Replacing the CPU/Processor

To install a new CPU, power off your workstation, wait 5 minutes to allow the heat sinks
to cool, and attach the wriststrap. Then remove the system module and the currently
installed CPU, as described earlier in this chapter, and follow these steps:
1. Turn over the CPU to find the connectors on the base, as shown in Figure
Figure 2-14.
2. Align the connectors with the connectors on the system board.
Dual processor

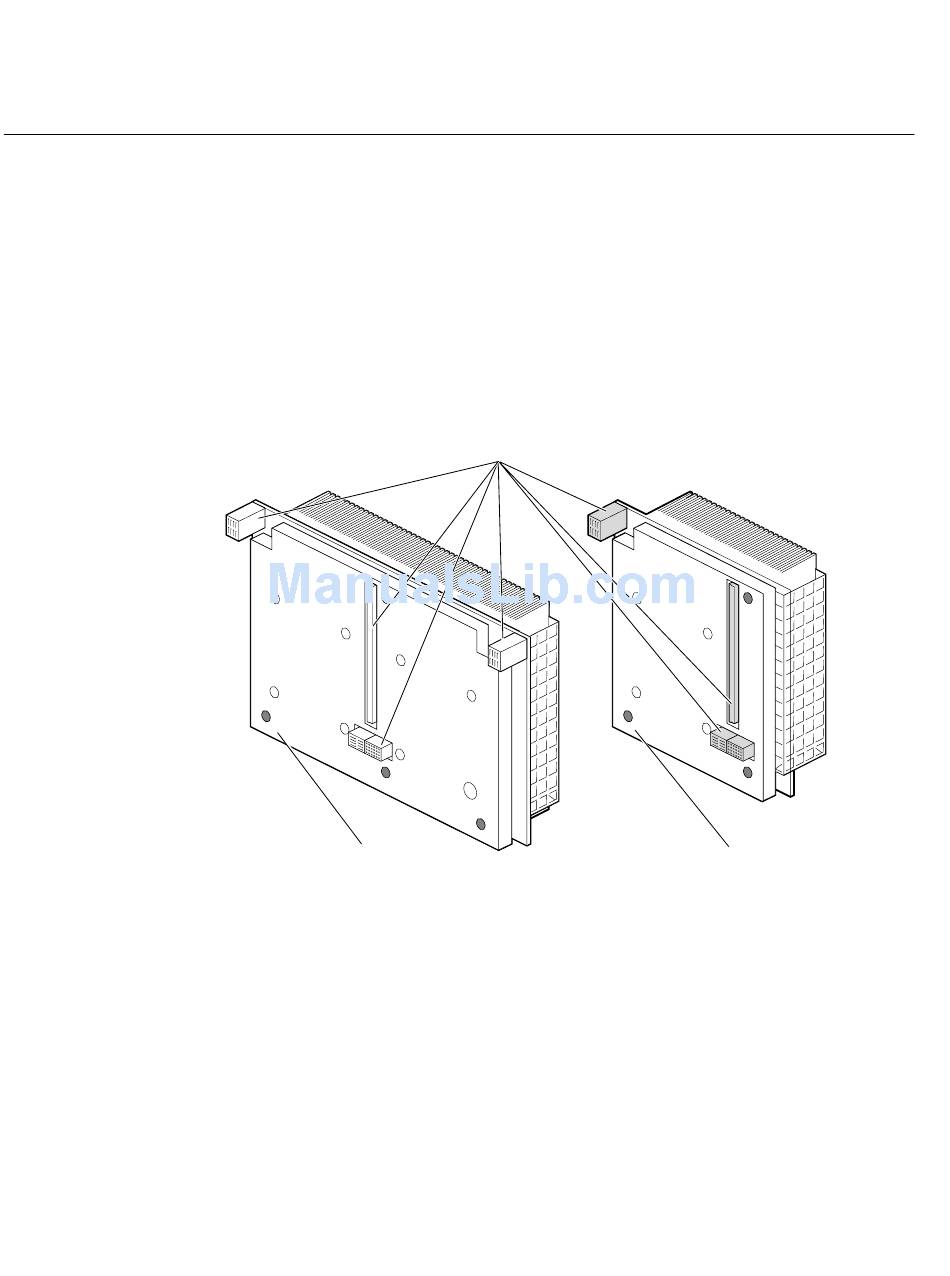

Figure 2-14 Viewing the Connectors on the Underside of the CPU
Connectors
Single processor
