Serial Ports

007-4278-001
The Silicon Graphics 330 Visual Workstation serial ports use a standard PC-compatible
pinout. The serial port supports data rates from 300 bits per second (bps) to 115.2 Kbps.

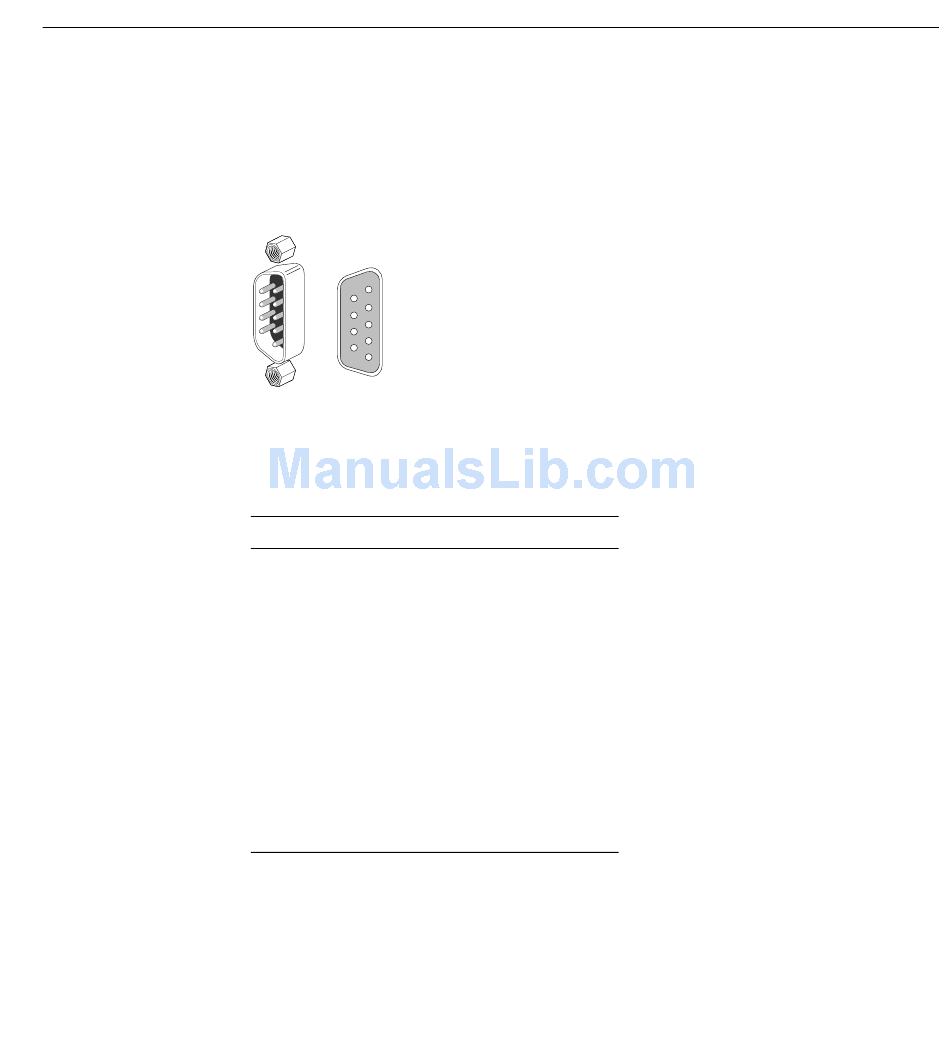

Figure A-4 shows the serial port.
1
6
2
7
3
8
4
9
5
Serial Port Pinout
Figure A-4
Table A-4 shows cable pinout assignments for the serial ports.
Table A-4 Serial Port Pinout
Pin Assignment Description
1 DCD Data Carrier Detect
2 RD Receive Data
3 TD Transmit Data
4 DTR Data Terminal Ready
5 SG Signal Ground
6 DSR Data Set Ready
7 RTS Request to Send
8 CTS Clear to Send
9 RI Ring Indicator
Serial Ports
131
