Preparing the Workstation

Compression Connector Caution

Caution: The compression connectors on all VPro graphics boards and most option
boards are very delicate and easily damaged. Do not touch or bump the gold bristled pad
shown in Figure 5-6. The connectors are on the side opposite the handles. Do not grab the
back of the XIO Tri-Module when you remove it, or the compression connectors may be
damaged.
Before you remove the XIO Tri-Module, read Appendix A, "Care and Cleaning of
Compression Connectors."
Bristled pad

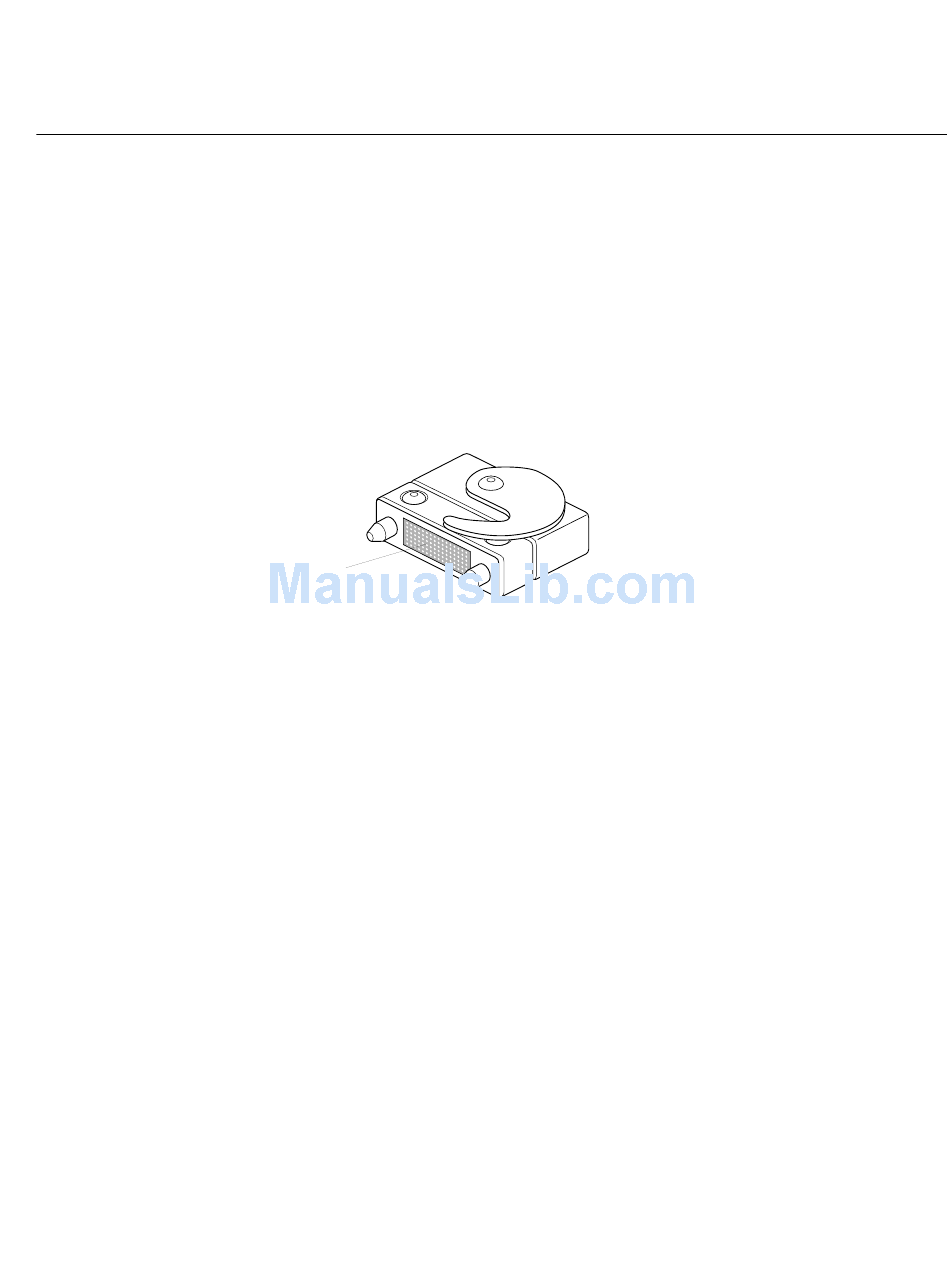

Figure 5-6 Identifying the Compression Connector
