Figure 4-17 Inserting The Board Screw; Figure 4-18 Placing The Door On The Pci Module - Silicon Graphics OCTANE2 Owner's Manual

Chapter 4: Installing and Removing PCI Boards
82
5. Insert and tighten the screw that secures the PCI board to the PCI module, as shown
in Figure 4-17.

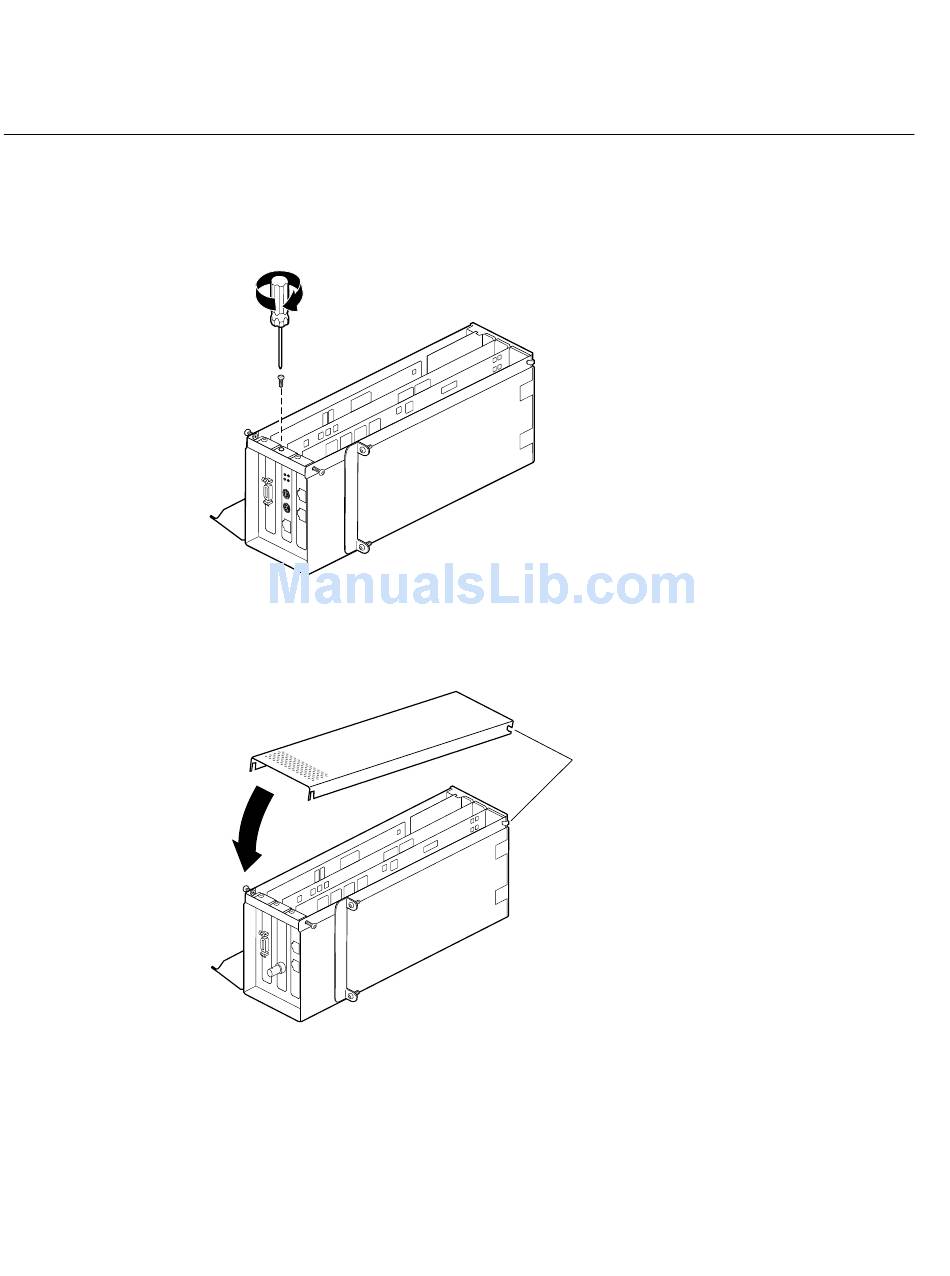

Figure 4-17 Inserting the Board Screw
6. Place the hinged door on the PCI module, as shown in Figure 4-18.
Placing the Door on the PCI Module
Figure 4-18
Release hinge
