Figure 2-7 Removing The System Module From The Chassis - Silicon Graphics OCTANE2 Owner's Manual

Chapter 2: Installing and Removing the CPU and Memory
38
3. Pull the system module from the chassis by grasping the immovable handle with
your left hand and bracing your right hand against the top of the workstation, as
shown in Figure 2-7.
Support the bottom of the module as you pull it out.
4. Place the system module on a dry, antistatic surface (such as your desktop) with the
CPU and DIMMs facing up.

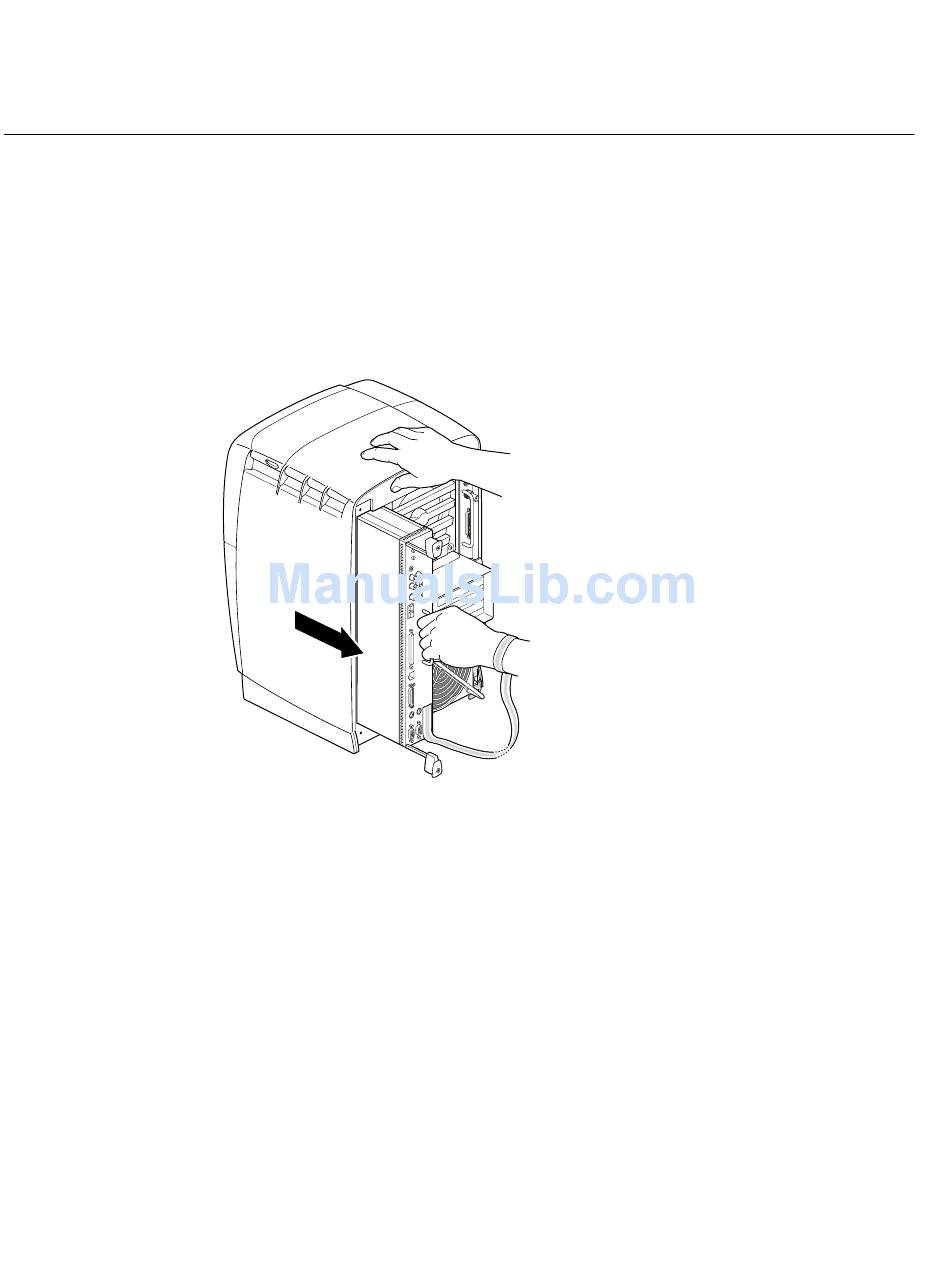

Figure 2-7 Removing the System Module from the Chassis
