Chapter 5: Installing and Removing XIO Boards

Preparing the Workstation

110
1. Open the cover and press the power button (see A in Figure 5-3) to power off your
workstation.
2. Unplug the power cable (B).
3. Power off the monitor by pressing the monitor power switch (C).
4. Wait 5 minutes before removing the XIO Tri-Module.
B
Power cable

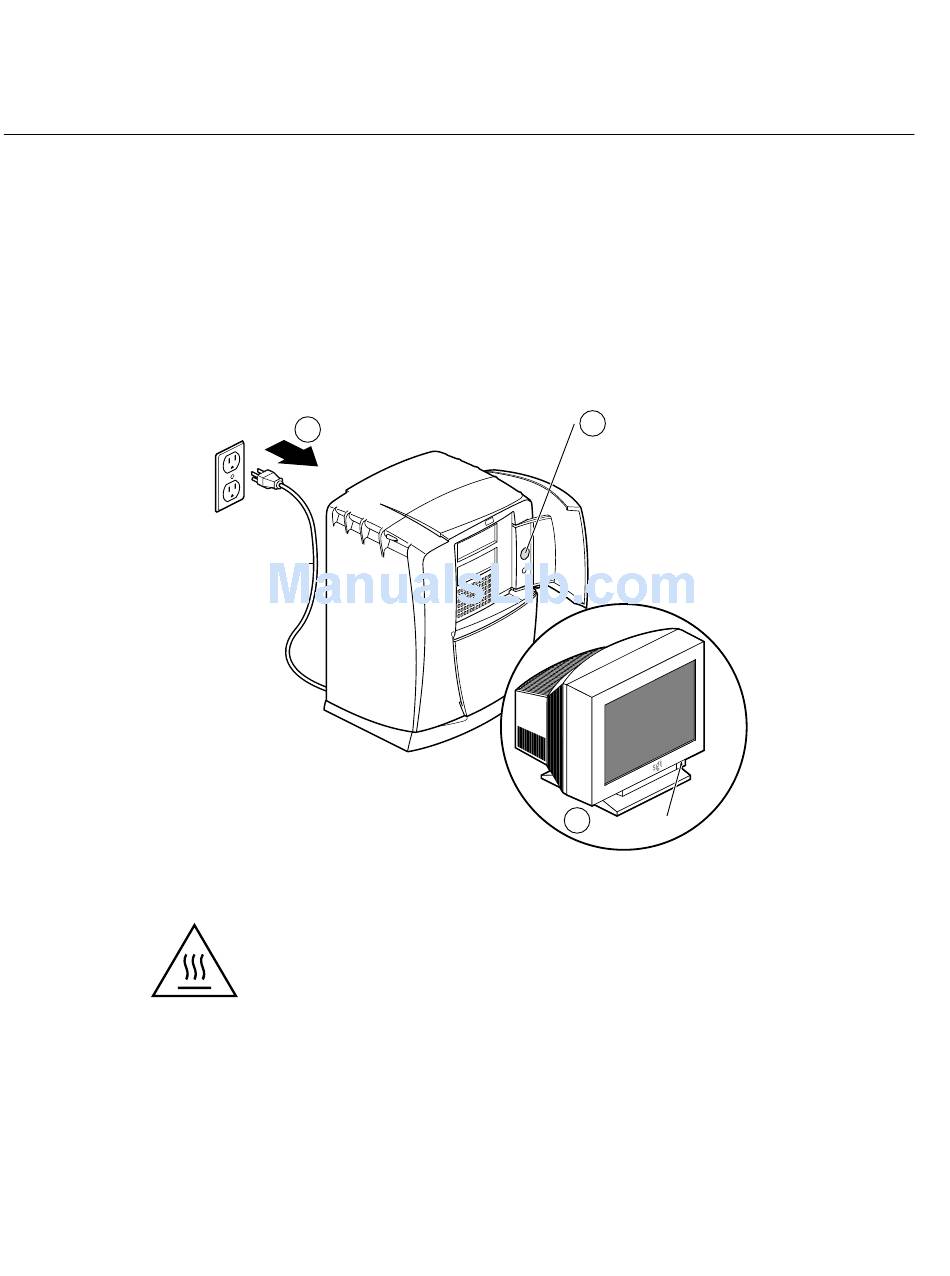

Figure 5-3 Powering Off the Octane2 Workstation
The heat sinks on the XIO boards get very hot. Wait 5 minutes after
Warning:
powering off your workstation before you remove the XIO Tri-Module. Test
before touching any of the XIO boards.
Power button
A
C
Power switch
