5 • Establishing basic IP connectivity
First list the existing interfaces:
SN(ctx-ip)[router]#interface <?>
<interface>
external
internal
lan
wan
Now delete the interfaces named "external" with the no interface command with the interface name as argu-
ment:
SN(ctx-ip)[router]#no interface external
Finally list the interfaces again to check if the IP interface external has been deleted:
SN(ctx-ip)[router]#interface <?>
<interface>
internal
lan
wan

Examples

Setting up an IP interface on an Ethernet port

The following example shows all required configuration steps, which end in an activated IP interface on Ether-
net port 0 on slot 0. The relation between the IP interface lan and the Ethernet port 0 on slot 0 is shown in
figure 12. The configuration procedure below starts in the operator execution mode:

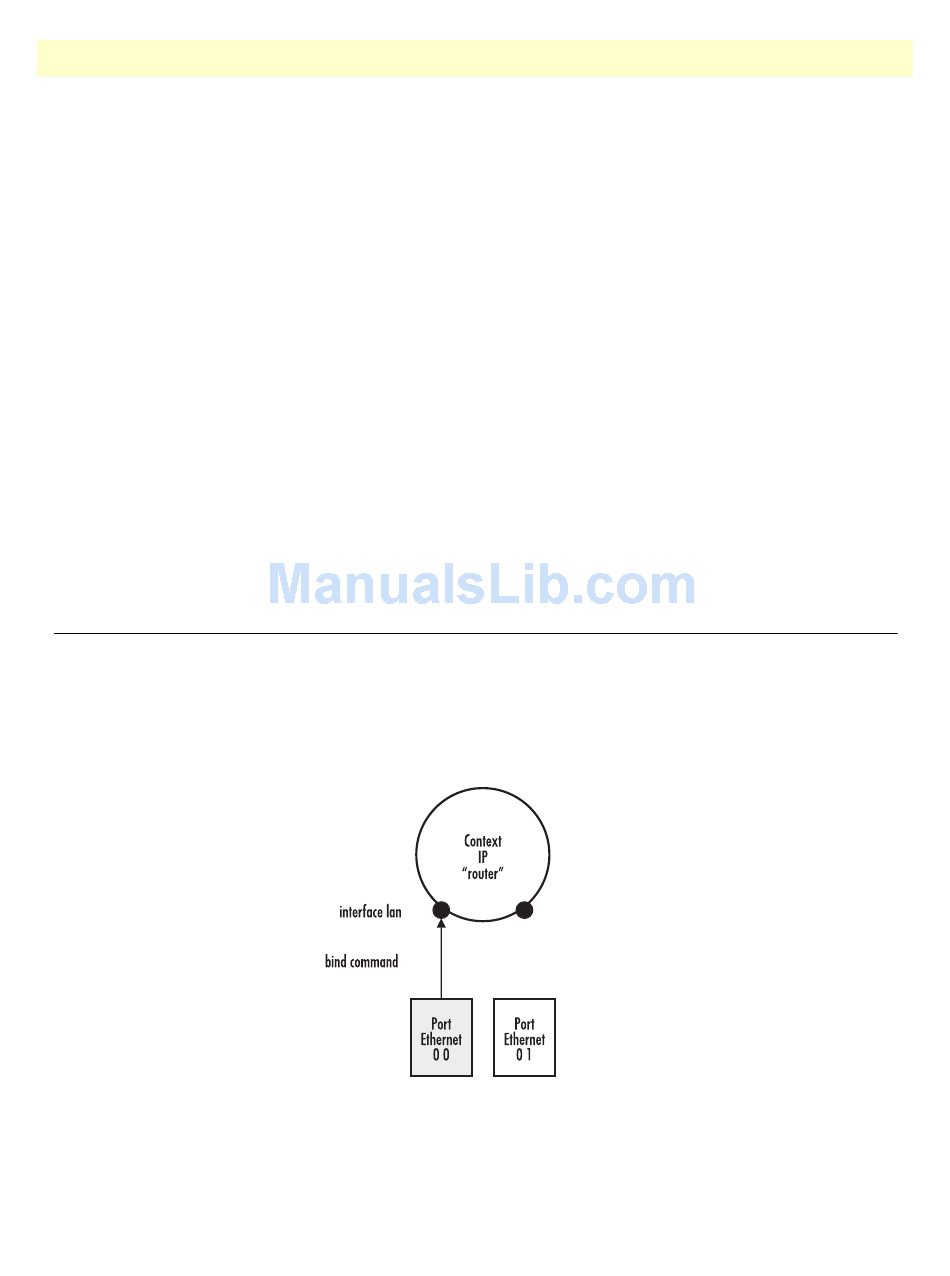

Figure 12. Relation between IP Interface lan and Ethernet port 0 on slot 0
58
New interface
Existing interface
Existing interface
Existing interface
Existing interface
New interface
Existing interface
Existing interface
Existing interface
