21 • PPP configuration

Introduction

This chapter describes how to configure the point-to-point protocol over different link layers.
The point-to-point protocol (PPP) provides a standard method for transporting multi-protocol datagrams over
point-to-point links as defined by the RFC1661 et al.. SmartWare offers PPP over the following link layers:
• PPP over Ethernet (PPPoE)
• PPP over Serial Link, i.e. V.35 / X.21, HDLC (only available with the SmartNode 2300)
• PPP over ISDN (not available yet)
Figure 50 illustrates the elements involved in the configuration of PPP. The elements required to configure PPP
over Ethernet are located in the upper left corner. The elements for PPP over serial link are in the lower left cor-
ner, for PPP over ISDN in the middle and the lower right corner.
Since the purpose of PPP is providing IP connectivity over different types of link layers, all PPP configuration
elements connect to the IP context through an IP interface. This connection is relayed via a subscriber profile if
either PPP peer requires authentication.
For PPP over Ethernet, a PPPoE Session must be configured on the respective Ethernet port. It is possible to
set-up several (limited by the available memory) PPPoE Sessions on the same Ethernet port, each session with
246

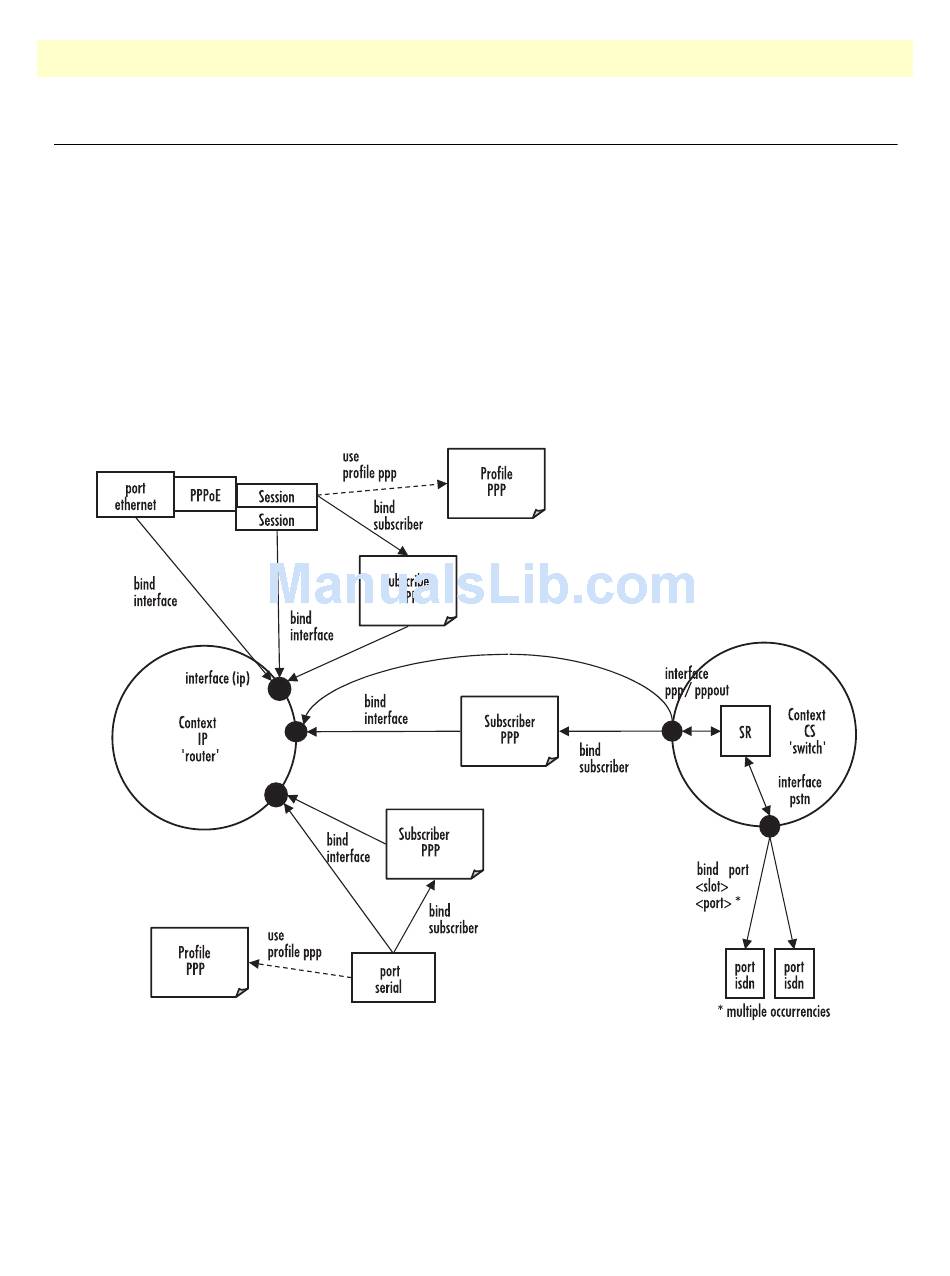

Figure 50. PPP configuration overview
SmartWare Software Configuration Guide

Introduction
