26 • Tone configuration

Example

The following example shows how to configure a tone-set profile for UK and apply it to the CS context.
Figure 65 illustrates the use and map commands.
Create the call-progress-tone profiles:
SN(cfg)#profile call-progress-tone dial-UK
SN(pf-callp)[dial-UK]#play 5000 350 0 440 0
SN(pf-callp)[dial-UK]#profile call-progress-tone alerting-UK
SN(pf-callp)[alertin~]#play 400 400 0 450 0
SN(pf-callp)[alertin~]#no play 200
SN(pf-callp)[alertin~]#play 400 400 0 450 0
SN(pf-callp)[alertin~]#no play 2000
SN(pf-callp)[alertin~]#profile call-progress-tone busy-UK
SN(pf-callp)[busy-UK]#play 400 400 0
SN(pf-callp)[busy-UK]#no play 400
SN(pf-callp)[busy-UK]#exit
Create the tone-set profile:
SN(cfg)#profile tone-set UK
SN(pf-tones)[UK]#map call_progress_tone dialtone dial-UK
SN(pf-tones)[UK]#map call_progress_tone alertingtone alerting-UK
SN(pf-tones)[UK]#map call_progress_tone busytone busy-UK
SN(pf-tones)[UK]#exit
338
SmartWare Software Configuration Guide

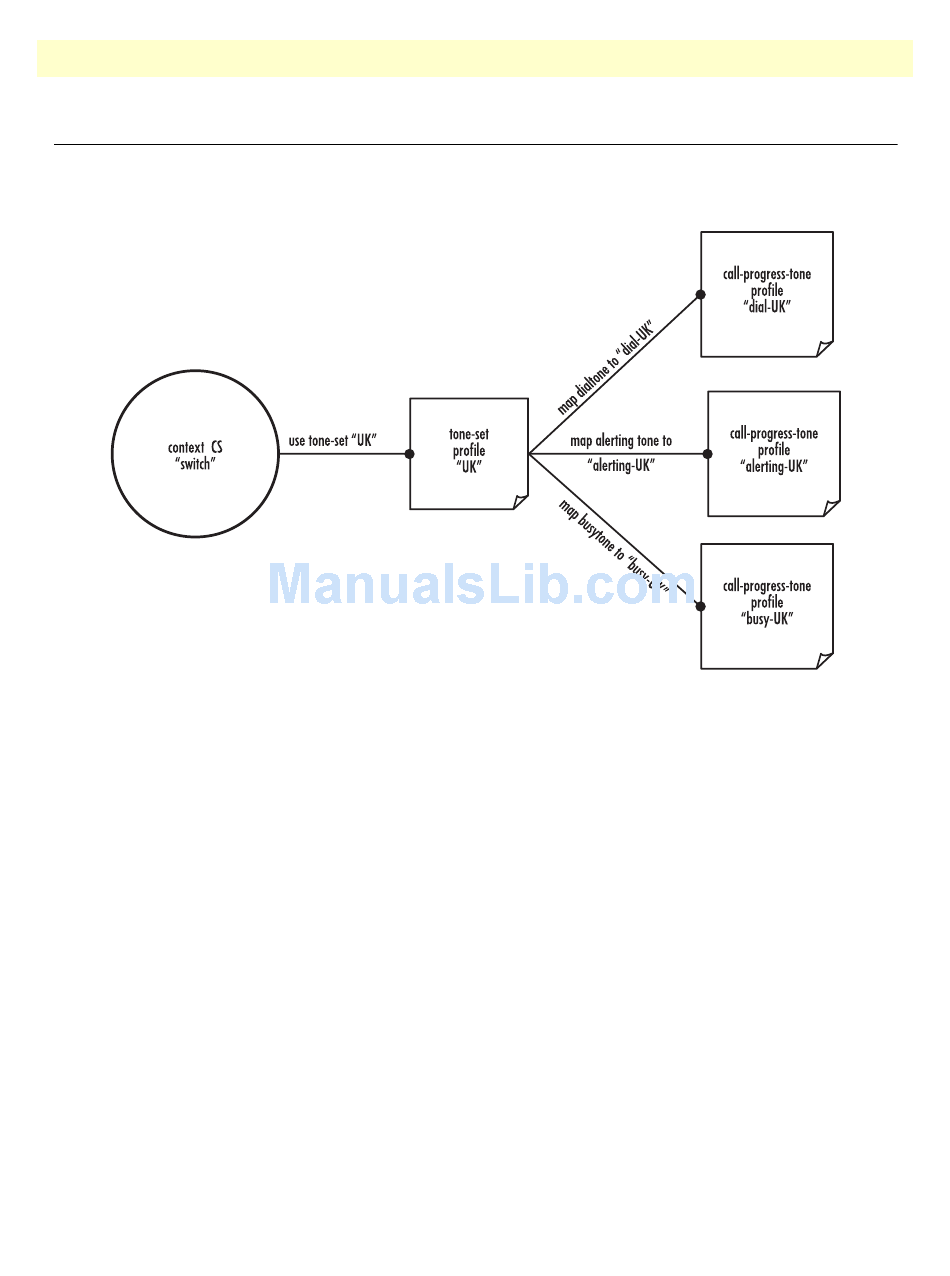

Figure 65. Assign a tone-set profile to the CS context

Example
