SmartWare Software Configuration Guide 29 • Gateway configuration

Examples

Branch offices in an enterprise network
Figure 71 shows a branch office in Linn and a branch office in Zurich connected to the main office in Berne
over ISoIP. Zurich and Berne are linked over an 2 Mbps direct copper DSL wire and use the voice codec G.711
for this high-rate connection. The local office in Linn is linked to Berne over an 500 kbps leased line and there-
fore uses the low-bit-rate voice codec G.723.

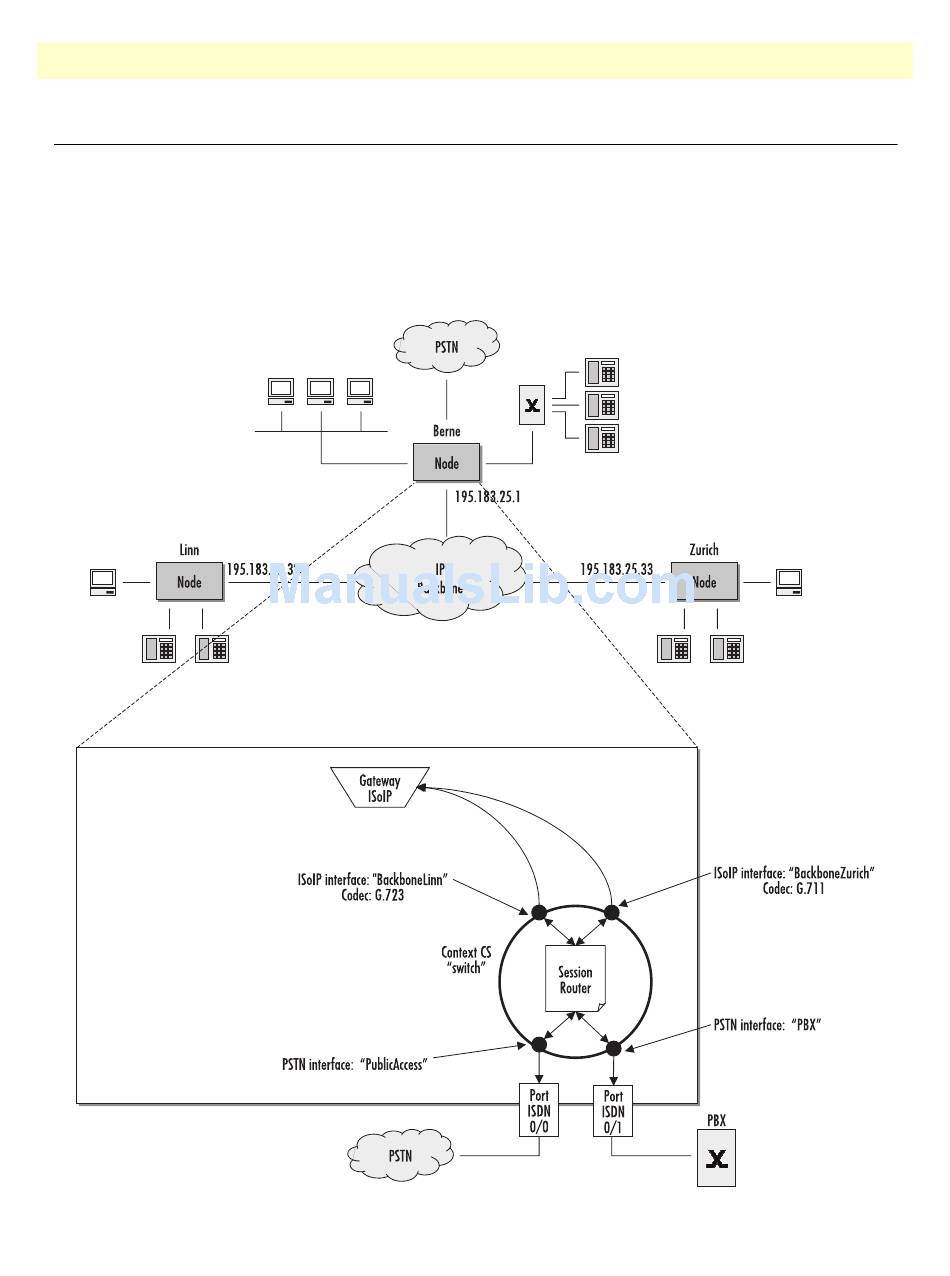

Figure 71. Branch offices in an enterprise network

Examples
