6 • System image handling
Type 'help' to display a list of commands that are available in the Download Agent domain (see
The Download Agent allows you to set and read different TFTP server settings:
• IP address ('ssip', 'gsip'),
• Retry count ('strc', 'gtrc'),
• Continue flag ('stcf ', 'gtcf ')
• Download file lifetime ('sdfl', 'gdfl')
The command 'download' is used to download an application image or a configuration file from the TFTP
server, for example:
download /SmartWare/Sn1xxx/Vx/R2.10/BUILD21215 b
where '/SmartWare/...' is the path to directory where the application image (Build) is stored, relative to the
configured TFTP root and 'b' is the batch file that tells the Download Agent which files to download.

Diagnostic

To access the Diagnostic domain, type 'sd 2'.
68

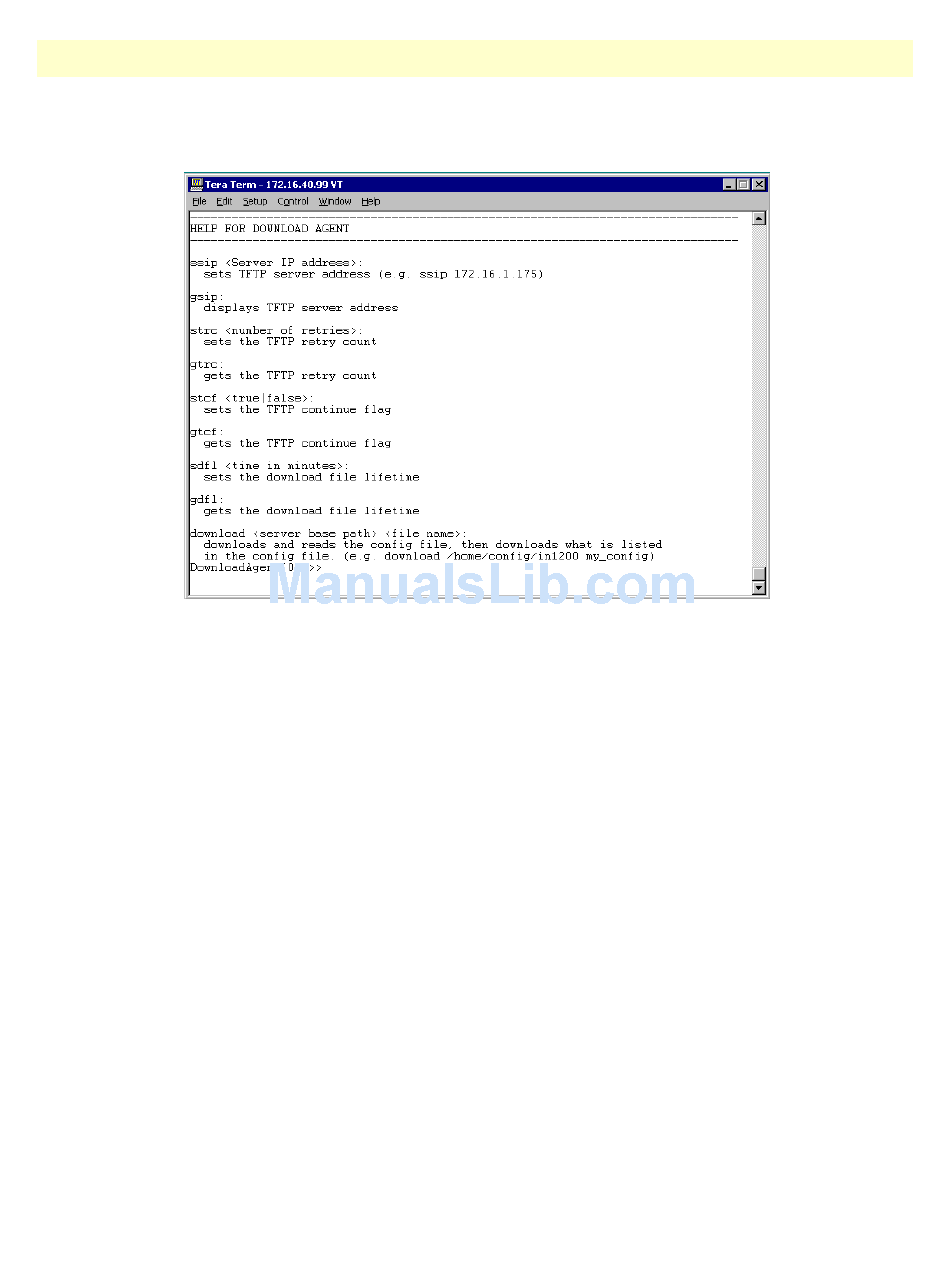

Figure 18. Download Agent Display
SmartWare Software Configuration Guide
Bootloader (for SmartNode 1000 and 2000 Series)
figure 18).
