SmartWare Software Configuration Guide 6 • System image handling
Type 'help' to display a list of commands that are available in the RTM domain (see figure 17).

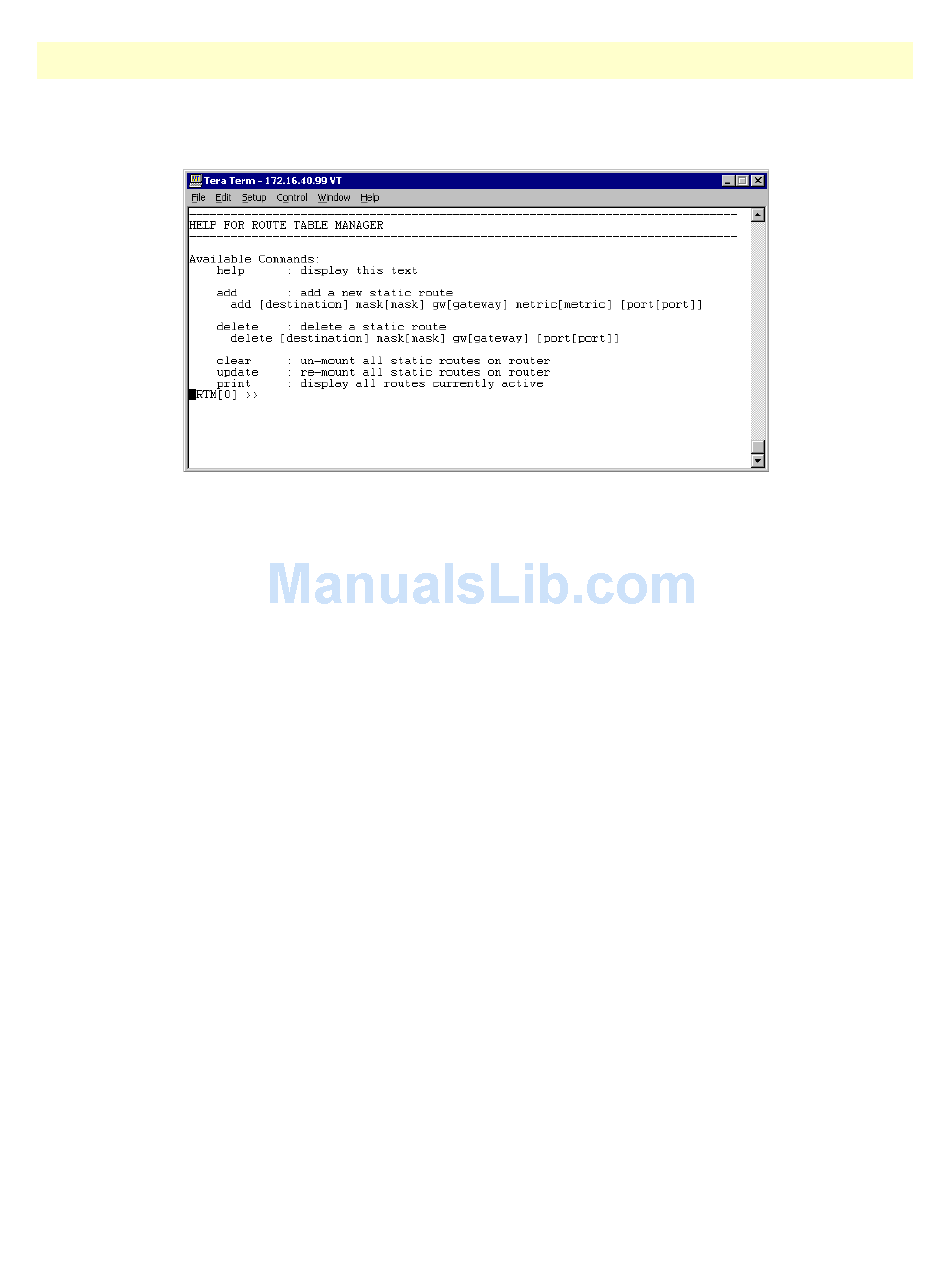

Figure 17. Route Table Manager Display
To add a new static route, use the command 'add'.
For example:
add 1.2.3.4 mask 255.255.0.0 gw 1.2.3.10 metric 0
A route may be deleted by using the command 'delete'.
For example:
delete 1.2.3.4 mask 255.255.0.0 gw 1.2.3.10
To deactivate/activate all static routes, use the commands 'clear' followed by 'update'.
A list of all routes currently active is displayed by typing 'print'.

Download Agent

To access the Download Agent, type 'sd 1'.
Bootloader (for SmartNode 1000 and 2000 Series) 67
