5 • Establishing basic IP connectivity
2. Delete the interfaces named external with the no interface command, with the interface name as argu-
ment:
SN(ctx-ip)[router]#no interface external
3. List the interfaces again to check if the IP interface external has been deleted:
SN(ctx-ip)[router]#interface <?>
<interface>
internal
lan
wan

Examples

Setting up an IP interface on an Ethernet port

The following example shows all required configuration steps, which end in an activated IP interface on Ether-
net port 0 on slot 0. Figure 11
slot 0. The configuration procedure below starts in the operator execution mode:

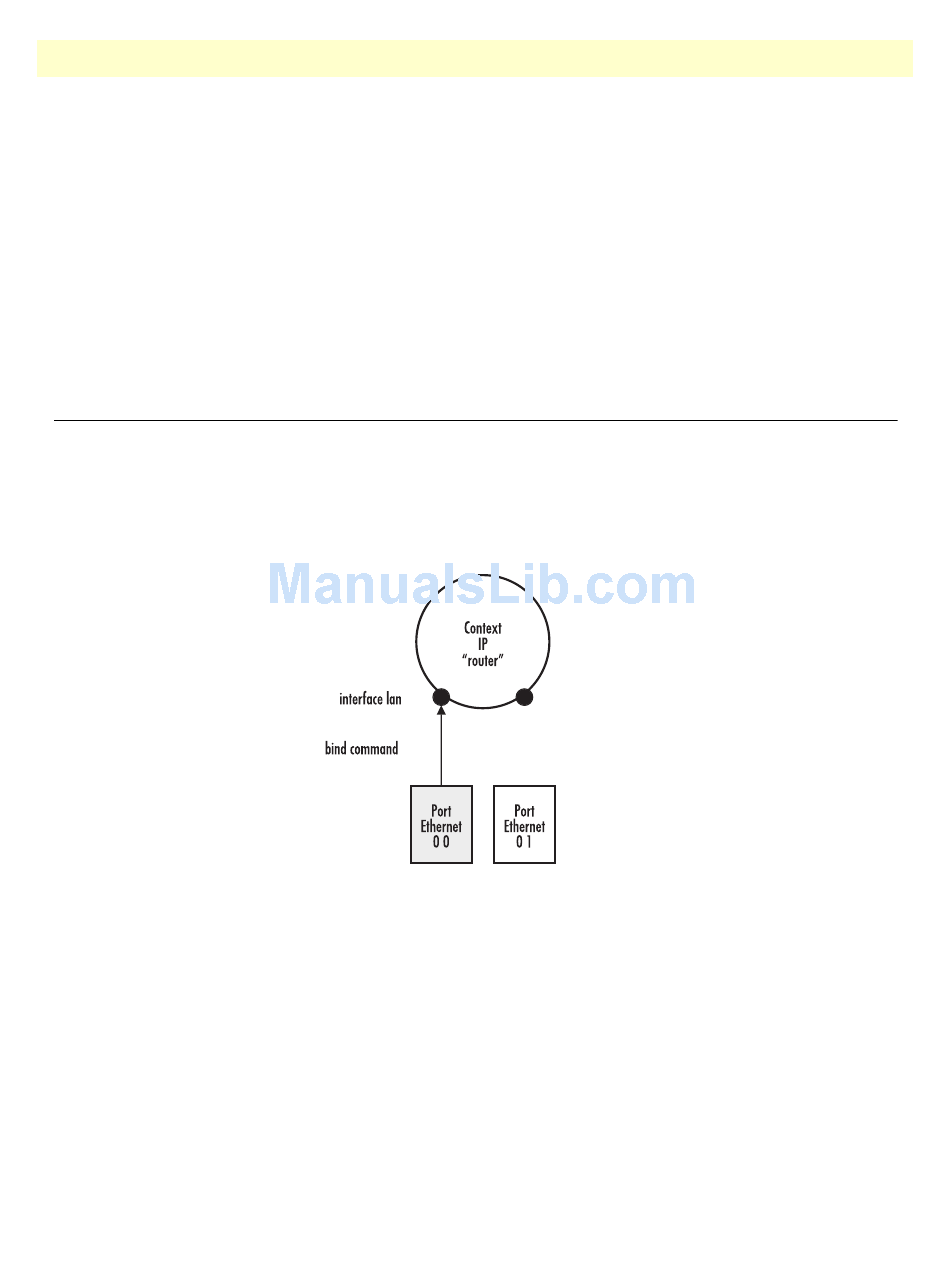

Figure 11. Relation between IP Interface lan and Ethernet port 0 on slot 0
1. Select the context IP mode for the required IP interface configuration.
SN>enable
SN#configure
SN(cfg)#context ip router
2. Create a new interface lan, for which both the IP address and net mask are specified.
SN(ctx-ip)[router]#interface lan
SN(if-ip)[lan]#ipaddress 192.168.1.3 255.255.255.0
3. Select the Ethernet port 0 on slot 0; set the medium to 10 Mbps in half-duplex mode, and choose the IP
encapsulation for this port.
SN(if-ip)[lan]#port ethernet 0 0
SN(prt-eth)[0/0]#medium 10 half
62
New interface
Existing interface
Existing interface
Existing interface
shows the relation between the IP interface lan and the Ethernet port 0 on
