• The default value in the Community text field is public. Set the community of the incoming traps as desired,
depending on the SNMP configuration of your SmartNode 1000, 2000 or 4000 series device.
• Click on Add button to add the port and community list on which the trap has to listen to. This is visible in
the TrapList combo box.
• The port and community list can be deleted by clicking on the Del button.
• When you need to load a trap parser file, click on the Load button, which will open up a dialog box, from
which you can load the parser file.
• In order to receive the traps now, click on the Start button. On clicking this TrapViewer begins to receive
traps as on specified port and community.
• The traps when received are depicted in the table in the TrapViewer. The trap table by default has the fol-
lowing four columns:
- Class that defines the severity of the trap.
- Source that depicts the IP address of the source from where the traps were sent.
- Date that shows the date and time when the trap was received.
- Message that by default has the object identifier format (sequence of numeric or textual labels on the
nodes along a path from the root to the object) of the trap if any, or it is blank.
• The details of the traps can be viewed by clicking the Trap Details button or right click the trap in the trap
table and select the option View Trap Details.
Using the AdventNet SNMP utilities

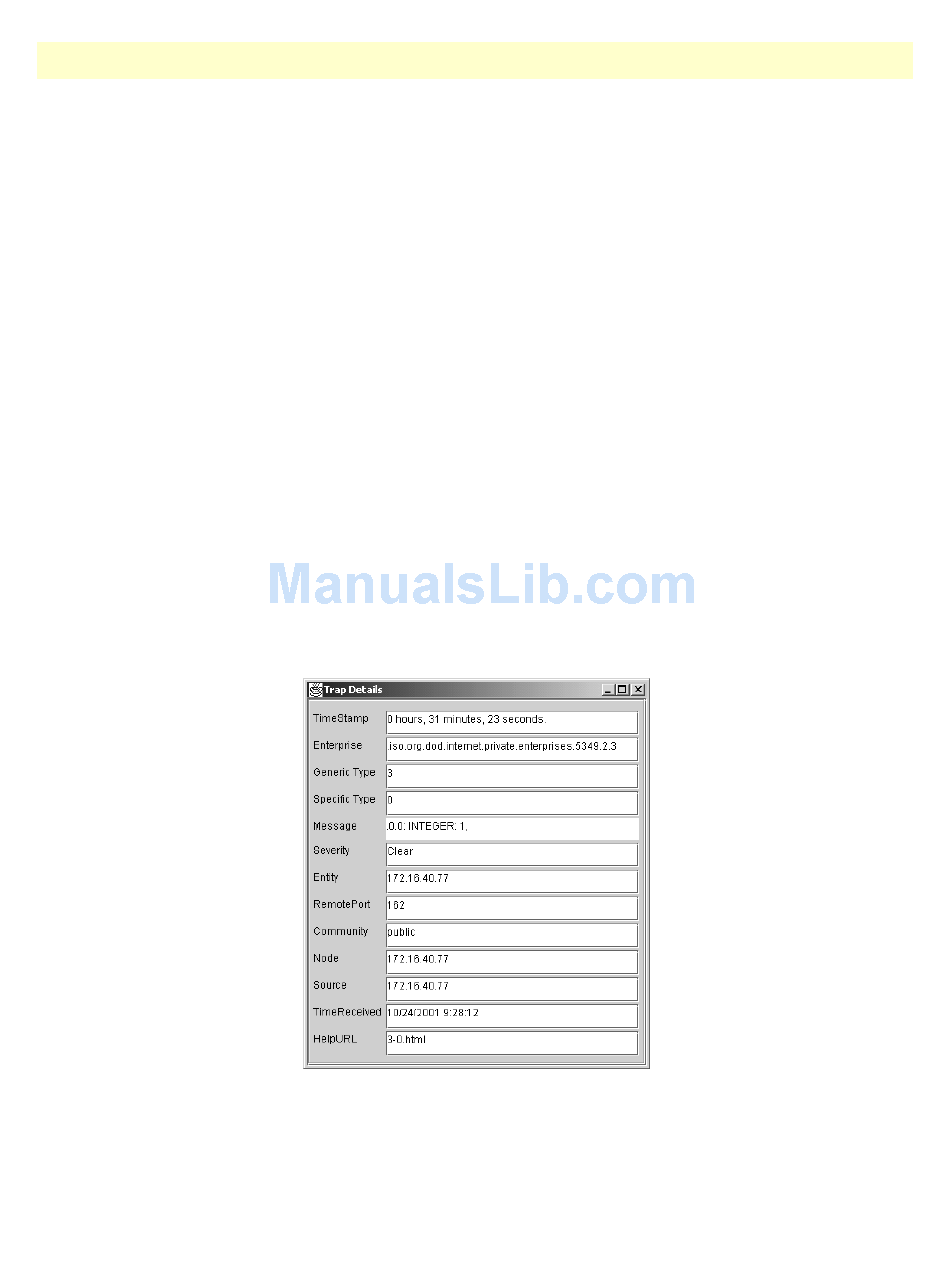

Figure 48
Figure 48. AdventNet Trap Details window of TrapViewer
18 • SNMP Configuration
show the screen of such a trap details window.
