Example - Patton electronics SmartNode Series Software Configuration Manual

SmartWare Software Configuration Guide

Example

Assume the scenario as illustrated in
Configure the ISDN port 1/0 to work as a Q-SIG master port but clock-slave and allow a maximum of eight
parallel B-channel connections.
172.16.40.71(cfg)#port pstn 1 0
172.16.40.71(prt-isdn)[1/0]#down
172.16.40.71(prt-isdn)[1/0]#uni-side net
172.16.40.71(prt-isdn)[1/0]#clock-mode slave
172.16.40.71(prt-isdn)[1/0]#channel-numbering etsi
172.16.40.71(prt-isdn)[1/0]#max-channels 8
172.16.40.71(prt-isdn)[1/0]#up

Example

figure 69:

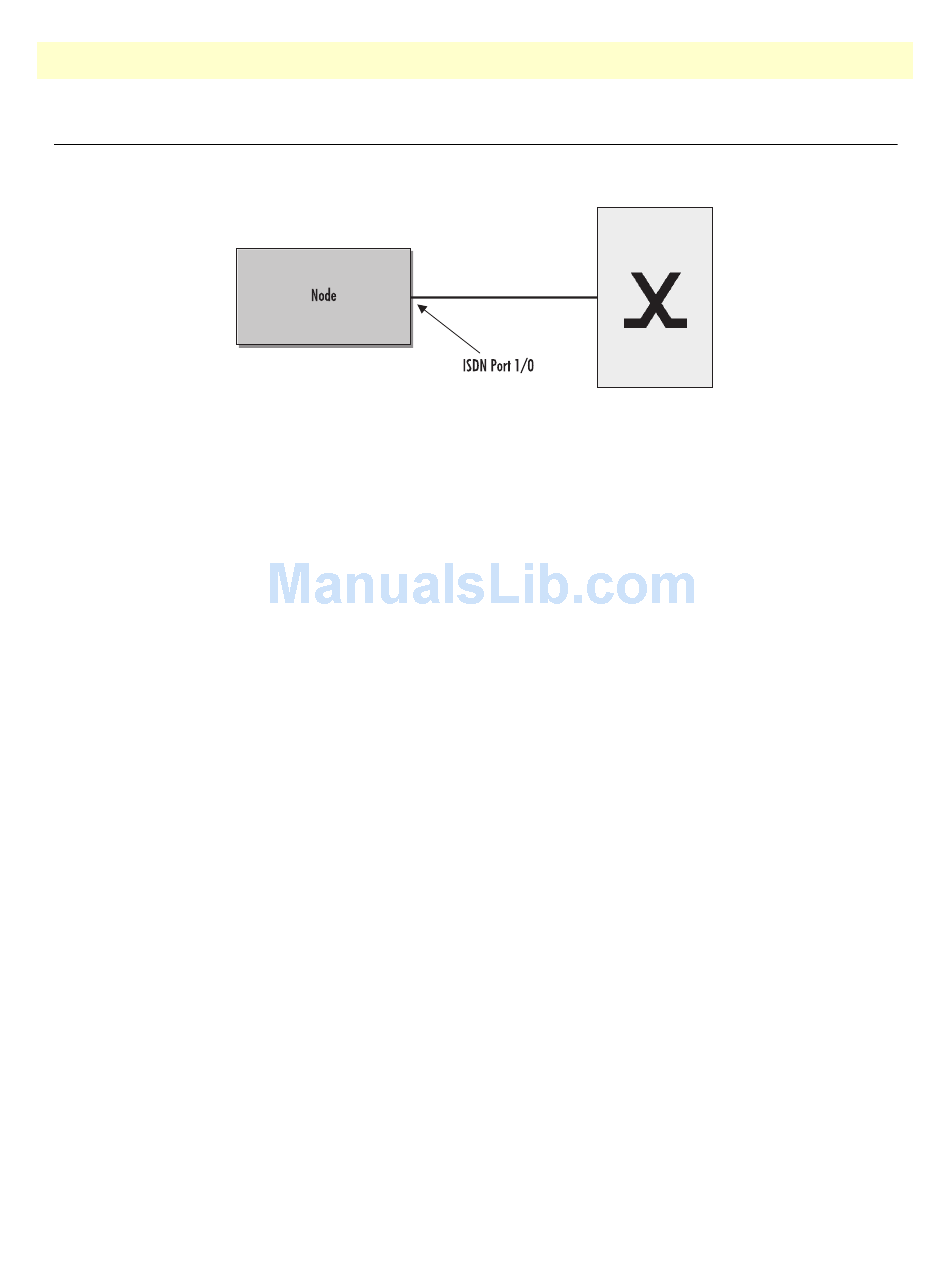

Figure 69. PBX connected to ISDN port 1/0
27 • ISDN port configuration
