Gatekeeper in LAN based telephony

Figure 72 illustrates LAN based telephony with a gatekeeper. We configure the SmartNode for gatekeeper
routed call signaling, and in addition we use fast connect to set up a call.
First we configure the CS interfaces and the call routing. We need one H.323 interface and one PSTN inter-
face.
Note
We don't specify the remote IP address on the H.323 interface.
SN>enable
SN#configure
SN(cfg)#context cs
SN(ctx-cs)[switch]#interface pstn PublicAccess
SN(if-pstn)[PublicA~]#routing dest-interface H323LAN
SN(if-pstn)[PublicA~]#exit
SN(ctx-cs)[switch]#interface h323 H323LAN
SN(if-h323)[H323LAN]# routing dest-interface PublicAccess
SN(if-h323)[H323LAN]#exit
SN(ctx-cs)[switch]#
Examples
> Following voice interfaces have been loaded:
> callapp
> BackboneLinn
> BackboneZurich
> PBX
> PublicAccess
> Following routing tables have been loaded:
> CnPNRouting
> Following functions have been loaded:
> Following number replacement tables have been loaded:

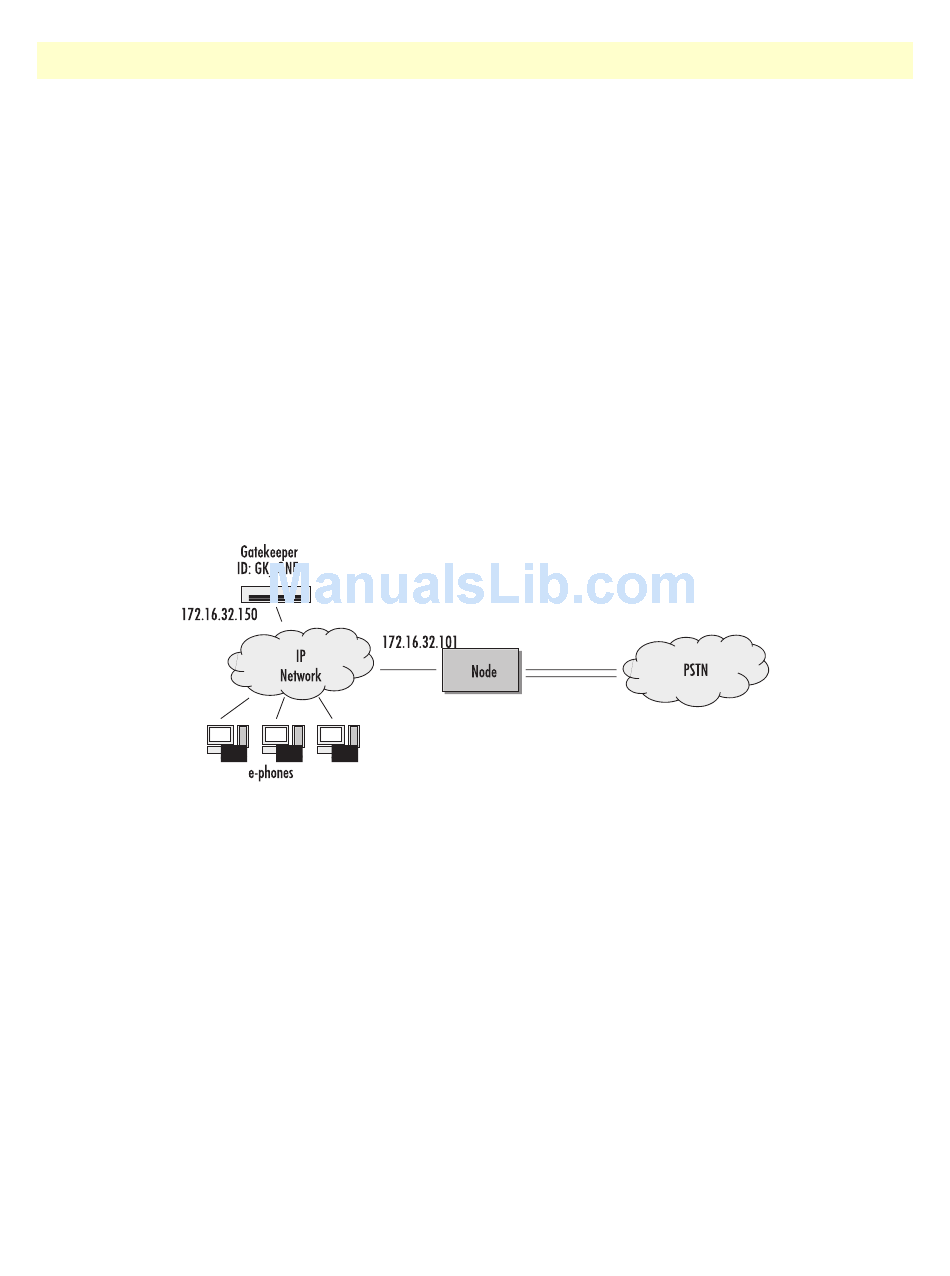

Figure 72. Gatekeeper in LAN based telephony
