Infill Elements for Demolished Host Elements
When you demolish an insert in a host element, the insert becomes an infill element.

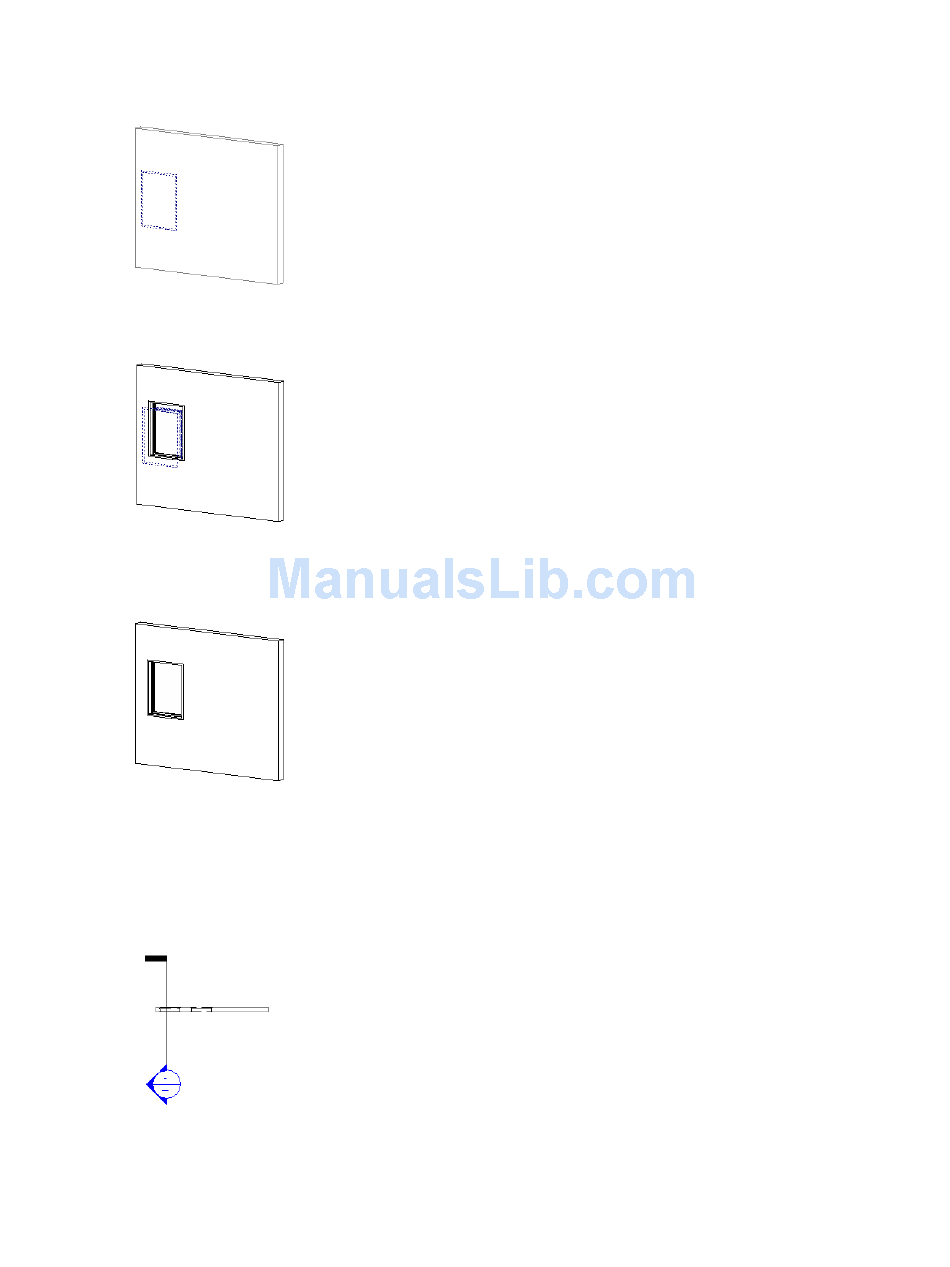

Demolished window becomes infill element
Next, you place a new insert near the demolished insert.
New window placed near demolished window
Then, if you apply a phase filter to the view that does not show demolished elements (such as Show Previous
+ New), you see only the new insert.
New window only

Viewing Infill Elements

To see an infill element, create a section view whose cut plane runs through the demolished insert and the
host.
Sample section passing through wall and demolished window
